Stepset Controller Profile-maker SSC series

Condition setting, confirmation and recording,
the heater controller of 3 function 1 equipment.

Stepset Controller Profile-maker SSC series

Profile-maker SSC series

Memory card data folder function

Memory card data folder function

Read the heating data from the memory card, and can edit the tables and graphs in EXCEL.
Heating data can be taken out easily from a memory card slot in the panel surface.

Memory card data folder function2

Multistep setting can be done easily by a touch panel display.

Multistep setting can be done easily by a touch panel display.

Multistage setting function

Multistage setting function

A processing method such as a decline of the surface tension by the heating and extinction of the residual stress can be considered.
Setting the reservoir of intermediate polymerization reaction.

Repeated heating and cooling method
Maintenance of solution processing temperature
Two-stage preheating quenching processing
Gas nitriding processing
Gas two-stage nitriding processing
Salt bath soft nitriding processing
Gas soft nitriding processing

Gradient setting function

Gradient setting function

Important expansion and shrinkage rate, it is test for a precision material.
Trapezoidal control.

Isothermal annealing
Management of recrystallization temperature
Slow heat → annealing → slow cooling process
Two-stage annealing
Age hardening treatment

Sine curve setting function

Sine curve setting function

Heat cycle test of an electronic device.

Aging accelerated test of an electronic device.

One-Shot heating function

One-Shot heating function

One-Shot heating function2

The condition shortening of the tact time
The tempering time management
The normalizing time management

Trigger Shift function (optional)

Trigger Shift function (optional)

When the trigger is input, and then move on to the next set temperature.

From multiple sensors, can be heating test by setting any of the input to the reference temperature.

From multiple sensors, can be heating test by setting any of the input to the reference temperature.

Multi-monitor function

Multi-monitor function

Temperature distribution can know in real time.

Reference temperature input selection function

Reference temperature input selection function

The sensors can be multiple mounting, heating the any position on the reference or the best, can evaluate the mounting position.

Average value control function

Average value control function

The sensor can be multiple mounting, the heating evaluate the position of the virtual to the reference.

Multi-loop supervisor function built-in.
That can cooperative control several heaters.

Multi-loop supervisor function built-in.That can cooperative control several heaters.

2 heater coordination heating function (2-loop)

2 heater coordination heating function (2-loop)

Heat the one object, use the air blow heater and halogen heater.

4 heater coordination heating function (4-loop)

4 heater coordination heating function (4-loop)

A certain areas is heated uniformly using 1 heater.

2 heater independent heating function (2-loop)

2 heater independent heating function (2-loop)

A certain areas is heated uniformly using several heaters.

Design Number List

Design Number Input Volt Output Power Loop Signal dimensions
SSC-DC12V-300W-1L AC85-264v DC0~12v 300w 1Loop Temp. input
4CH
/
Analog input
4CH
Standard
SSC-DC24V-300W-1L AC85-264v DC0~24v 300w 1Loop Standard
SSC-DC24V-600W-2L AC85-264v DC0~24v 300w x2 2Loop Standard
SSC-DC36V-600W-1L AC85-264v DC0~36v 600w 1Loop Standard
SSC-DC36V-1200W-2L AC85-264v DC0~36v 600w x2 2Loop Standard
SSC-AC15A-1L AC100-110/200-220v 15A 1Loop Standard
SSC-AC30A-1L AC100-110/200-220v 30A 1Loop Standard
SSC-AC30A-2L AC100-110/200-220v 15Ax2 2Loop Standard
SSC-AC45A-3L AC100-110/200-220v 15Ax3 3Loop Large
SSC-AC60A-1L AC100-110/200-220v 60A 1Loop Standard
SSC-AC60A-2L AC100-110/200-220v 30Ax2 2Loop Standard
SSC-AC60A-4L AC100-110/200-220v 15Ax4 4Loop Large
SSC-AC90A-3L AC100-110/200-220v 30Ax3 3Loop Large
SSC-AC120A-2L AC100-110/200-220v 60Ax2 2Loop Large
SSC-AC120A-4L AC100-110/200-220v 30Ax4 4Loop Large
*1.Temperature input : J,T,E,R,B,N,S,w5Re,w26Re,JPt100,Pt100
*2.Analog input :±10V,±5V,0-10V,0-5V,1-5V,0-20mA,4-20mA
*3.In order to use the water-cooled type halogen heater, water cooling system is required.
*4.HLH of high output type requires a separate cooling air.
*5.Nameplate will be created in designated language as much as possible.

Standard Function

Memory card data folder Read the heating data from the memory card, and can edit the tables and graphs in EXCEL.
Multi-monitor Displays the total 8CH of temperature input 4CH and analog input 4CH the trend graph.
Multi-temperature setting Multistage, Sign-curve and Gradient heating setting by a touch panel.
Supervisor function Multiple signal and several heaters coordination heating function.
One-shot heating function Heating time can be established by one shots from the preset temperature arrival value.
Temperature input 4CH K,J,T,E,R,B,N,S,w5Re,w26Re,JPt100,Pt100 4CH
Analog input 4CH ±10V,±5V,0-10V,0-5V,1-5V,0-20mA,4-20mA 4CH

Optional Function

TA4  Temperature and analog multiple input 4CH
HL  High-Low Control for rapid-heating or preheating
TR  When the trigger is input, and then shift move on to the next set temperature.
RC1  Heating start or stop in the signal from outside
RC2  Specified output voltage in 4-20mA from outside
RSP  Specified thermocontroller temp. in 4-20mA
PVMON  Monitor, Output 4-20mA signal the temperature of the heating object.
SVMON  Monitor, Output 4-20mA signal the temperature of the set volume.
RS485  RS-485 Communication
IOT  IOT function
ACOUT  Power supply for AC Air cooling fan.
DC24  DC24V power supply cooling fan
AirV  Air opening and closing valve
OFDT  Air closing valve, heating stop after the cooling timer 5 minutes
BO  With heater burnout detection and display. With current limiter.
OVH  Over-heat Alarm. (For ABH/DGH□v-□w/□□/+2S type)
WP  Cooling water pressure shortage alarm
AP  Air Blow Heater and terminal cooling air pressure shortage alarm
CFS  Cooling fan stop detection signal processing
FPR  Front Protection Rail
RPR  Rear Protection Rail
Power Cable  Manufacture the specification of the power cable.
 +α  If user need a function other than the above, please contact us.

*6.When the to add a function, there is that the external dimensions changes.

Stepset Controller Profile-maker SSC series

General specification

Power  supply  AC100-240v
Internal current consumption  1.6A(except the heater output)
Ambient temperature  0~50℃ (No freezing No condensation No dew)
Storage temperature  -10~+60℃ (No freezing No condensation No dew)
Use and storage humidity  35~85%RH (No freezing No condensation No dew)
Withstand voltage  AC1500V 1minute Between power supply terminal and input and output terminals
Noise resistance  1500Vp-p Pulse width 1μs,50ns IECstandard compliant 61000,4-2/3/4/6)
Insulation resistance  DC500MV- 5MΩ over (Between the power supply terminal and case)
Use atmosphere  No Dust, No terribly corrosive gas
Use altitude  2000m or less
External dimensions  Height 250mm width 400mm depth 270mm (Standard type)
Mass  About 5kg (Standard type)

Touch panel specification

Display element Ultra-high brightness TFT color LCD
Display dots Number VGA 640×480
LCD life About 5000 hours (Normal temp. and humidity)
Backlight life About 5400 hours (Normal temp. and humidity, Cold-cathode tube can not replaced)
Touch switch life 1million times or more (touch switch actuating force 0.98NT below)

Memory card specification

Storage element CF compact flash card EEPROM
File type CSV
Memory capacity 128MB
Number of rewrites 100,000 or more times
Storage capacity Maximum 128MB, 262144 files

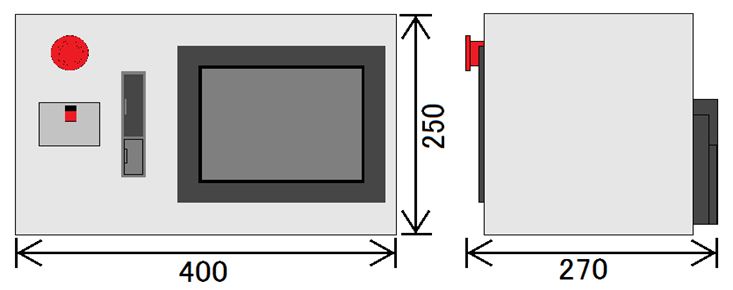

SSC Standard type External dimensions

<< SSC Standard type External dimensions >>
