[ Short-size middle power Air Blow Heater ]ABH-10x6PH

Short-size middle power Air Blow Heater ABH-10x6PH

This is the simple structure that cut a screw at the both ends of the stainless steel pipe.
Connection fittings can be manufactured by our company.
The connection metal fittings are available for the TIG welding, too.

• The ABH-10x6PH is short and wide model of ABH-29H.
• A heating element of 2.5kw-5kw was included in a metal pipe case of φ 10×6.

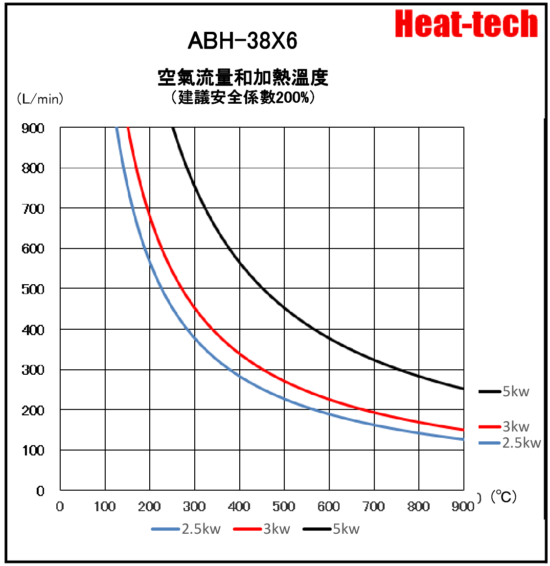

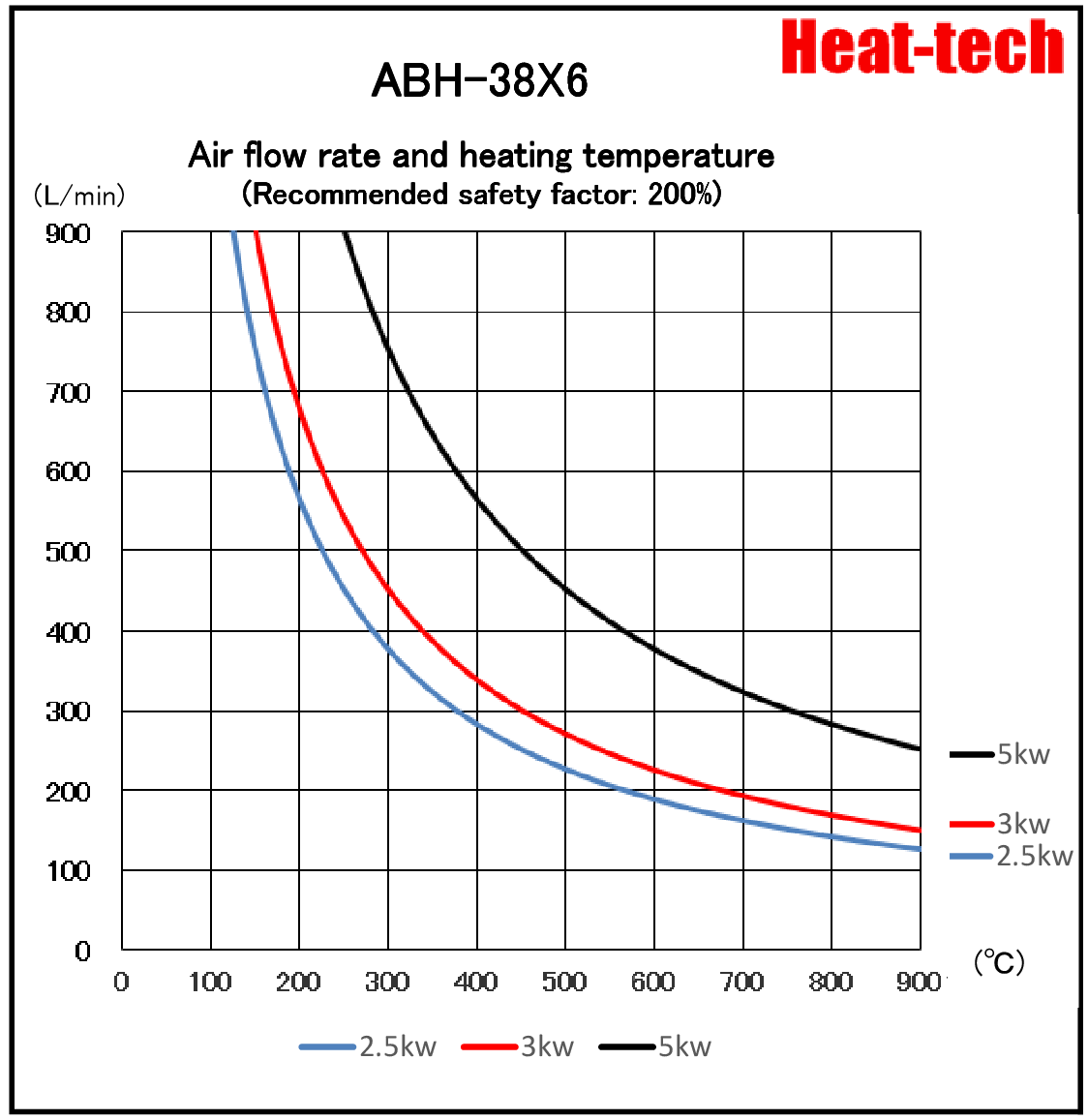

• When 200 – 400ℓ/min is necessary, air flow quantity, please adopt it.
• Accurate temperature control can be performed using the thermocouple of the output port.
• Since the heating element temperature can be monitored, safety measures for excessive temperature rise can be done.
• The ABH-10x6PH has screw thread to the output mouth.　It can install many accessories .
• The ABH-10x6PH series has a metal pipe case of various length.
• The ABH-10x6PH series can watch heating element temperature by safe measures for prevent overheat.
• Since the ABH-10x6PH injects transparent gas and heats it, it is best for photographing and recording heating conditions.

Catalog

PDF Catalog Download
