Heater controller feedback type for Pyrometer ( Rradiation thermometer ) HCF series

Contents

◆ Features ◆

Feedback control can be performed using a radiation thermometer.
By overheating zero setting, providing a stable heating.
Equipped with an air-cooling fan power supply as an option, it allows feedback control of an air-cooled halogen heater.
By installing the front protection rail, the rear protection rail, and the handle as optional, it becomes the field specification.
If user need more sophisticated control, we recommend a high-end model “High-performance heater controller HHC2”.

By overheating zero setting, providing a stable heating.

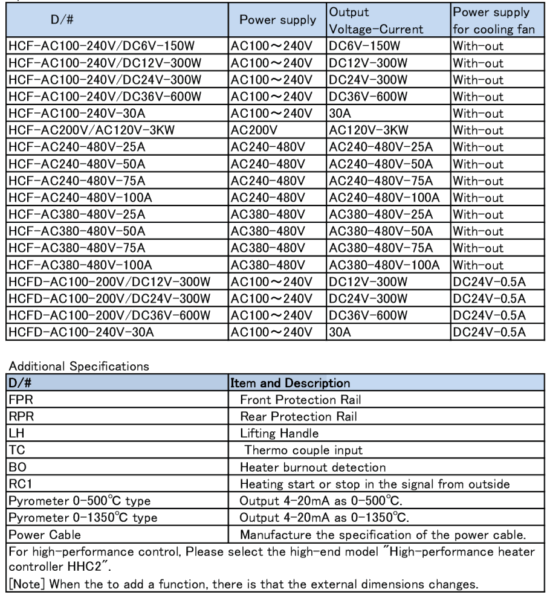

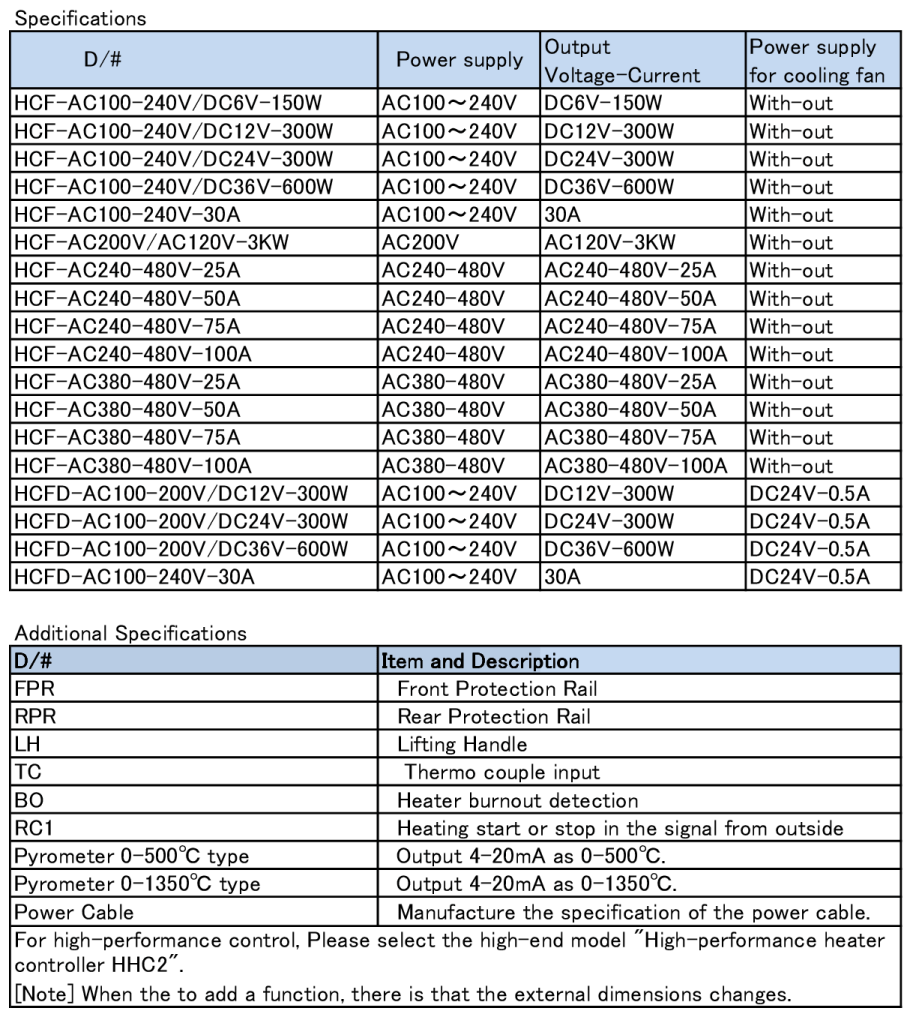

D/#	Input Power	Output	Power supply for cooling fan
HCF-AC100-240V/DC6V-150W	AC100～2４0V	DC6V-150W	With-out
HCF-AC100-240V/DC12V-300W	AC100～2４0V	DC12V-300W	With-out
HCF-AC100-240V/DC24V-300W	AC100～2４0V	DC24V-300W	With-out
HCF-AC100-2４0V/DC36V-600W	AC100～2４0V	DC36V-600W	With-out
HCF-AC100-2４0V-30A	AC100～2４0V	AC3KW／6KW	With-out
HCF-AC220V/AC120V-3KW	AC220V	AC120V-3KW	With-out
HCFD-AC100-200V/DC12V-300W	AC100～2４0V	DC6V-150W	DC24V-0.5A
HCFD-AC100-200V/DC24V-300W	AC100～2４0V	DC12V-300W	DC24V-0.5A
HCFD-AC100-200V/DC36V-600W	AC100～2４0V	DC24V-300W	DC24V-0.5A
HCFD-AC100-2４0V-30A	AC100～2４0V	DC36V-600W	DC24V-0.5A
HCFD-AC100V/AC100V-2.5KW	AC100～2４0V	AC3KW／6KW	DC24V-0.5A

D/#	Item and Description
FPR	Front Protection Rail
RPR	Rear Protection Rail
LH	Lifting Handle
TC	Thermo couple input
BO	Heater burnout detection
RC1	Heating start or stop in the signal from outside
Pyrometer 0-500℃ type	Output 4-20mA as 0-500℃.
Pyrometer 0-1350℃ type	Output 4-20mA as 0-1350℃.
Power Cable	Manufacture the specification of the power cable.
For high-performance control, Please select the high-end model “High-performance heater controller HHC2”.
[Note] When the to add a function, there is that the external dimensions changes.
