Air Blow Heater Laboratory Kit 220v-3kw-29PH(External air supply Type)

Easy Temperature Control

Air Blow Heater Laboratory Kit 220v-3kw-29PH(External air supply Type)

◆ Feature ◆

  1. Since it is a kit, the Air Blow Heater can be used easily.
  2. Output a moment 900 ℃ high temperature hot air.
  3. Equipped with an air regulator. Adjust the air pressure while Air Blow Heating test.
  4. Equipped with a thermocouple to the hot air blow section.
  5. Temperature can be managed easily.
  6. Various attachments can be mounted to the screw portion of the M32F.
  7. Air is supplied, and it heats and only blows off!
  8. No flame safe and clean! No flame, it can easy clearly photo shoot!

Air Blow Heater Laboratory Kit 220v-3kw-29PH(External air supply Type)

Assembly example

( Assembly example * Laboratory Kit is delivered as individual components. )

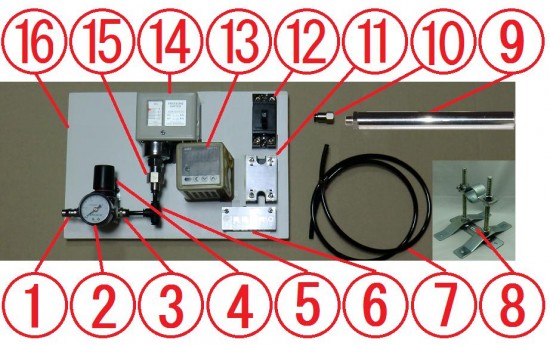

[ Laboratory Kit Packing List ]

  1. One-touch coupler for compressed air supply
  2. Pressure meter
  3. One-touch connector for regulator Φ8
  4. Pressure Regulator
  5. T-shaped fitting Φ8
  6. Terminal block for four-terminal
  7. Φ8 Urethane tube 3m

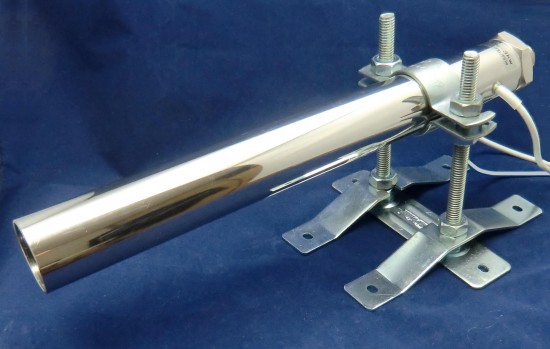

  8. Stand for the Air Blow Heater

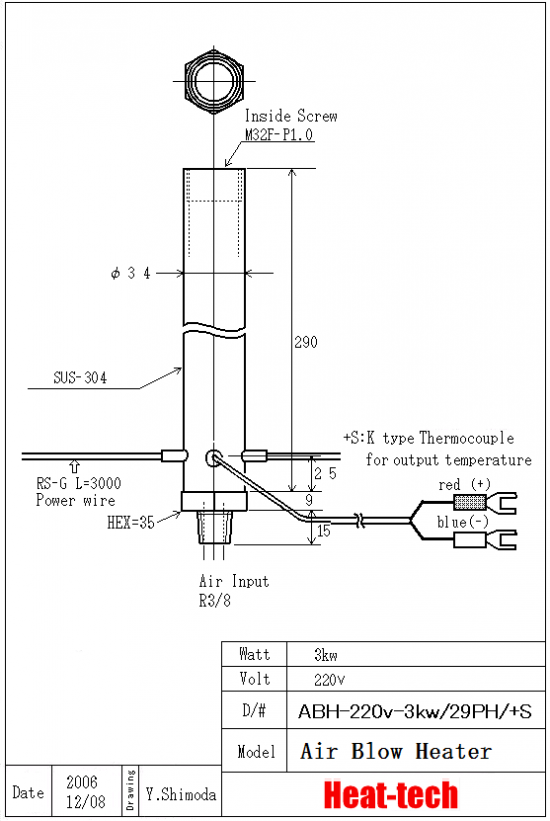

  9. Air Blow Heater ABH-220v-3kw/29PH/M32F / + S (with built-in thermocouple code 3m)
  10. One-touch connector for the Air Blow Heater
  11. SSR (AC100-240v)
  12. Breaker switch (AC220V)
  13. Temperature controller (AC100-240v)
  14. Confirmation pressure sensor for air supply (AC100-240v)
  15. One-touch connector for pressure sensor Φ8
  16. Fixing device board (300 x 200 x 17)

Air Blow Heater Laboratory Kit 220v-3kw-29PH(External air supply Type)

Air Blow Heater Laboratory Kit 220v-3kw-29PH(External air supply Type)

Air Blow Heater Laboratory Kit 220v-3kw-29PH(External air supply Type)
