Drum Level Communicator DLC Series

Easy to Use!

It only  put into the drum, and turn on the power!

  • By the time of fullness, the bell and light, warning sending.
  • For Water, Oil and so on
  • AC200V-240V Multiple power.

Drum Level Communicator DLC Series

How to use.

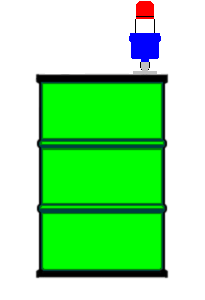

1. DLC insert perpendicular to the drum.

1. DLC insert perpendicular to the drum.

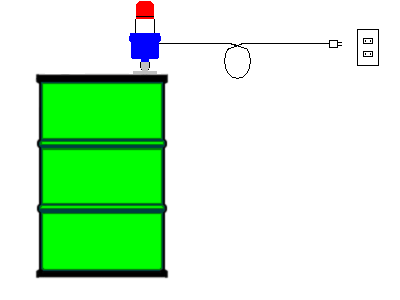

2. The power plug is inserted in the outlet.

2. The power plug is inserted in the outlet.

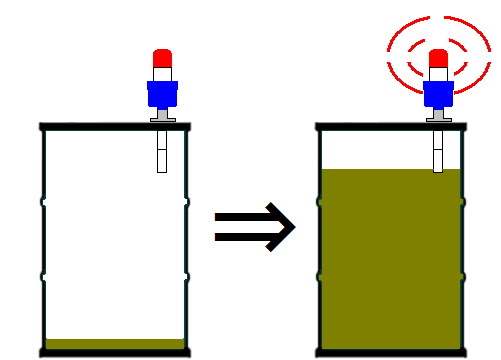

3. When the sensor detects rising water level and sends an alarm on DLC-100.

3. When the sensor detects rising water level and sends an alarm on DLC-100.

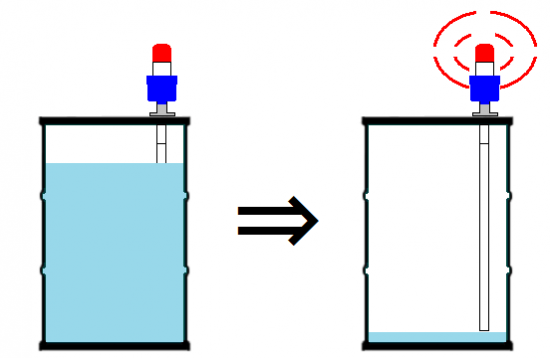

4.When the sensor detects lower water level and sends an alarm on DLC-800.

4.When the sensor detects lower water level and sends an alarm on DLC-800.

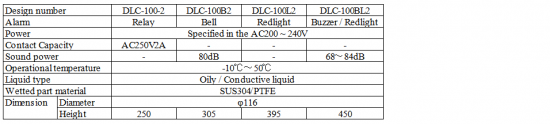

For Full Alarm DLC-100 series specification

For Full Alarm DLC-100 series specification

*1 This product is not explosion proof. Please Do not use of flammable fuels such as gasoline, kerosene.
*2 Different voltage supply types can also be manufactured by special order. Please contact us.

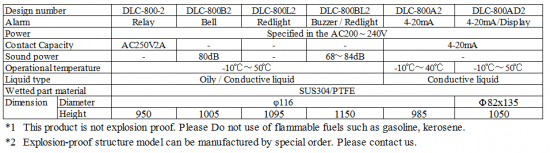

For Empty Alarm  DLC-800 series specification

For Empty Alarm  DLC-800 series specification

*1 This product is not explosion proof. Please Do not use of flammable fuels such as gasoline, kerosene.
*2 Different voltage supply types can also be manufactured by special order. Please contact us.

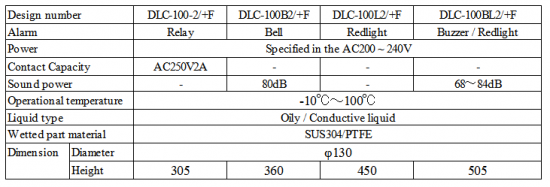

Heat-resistant 100℃ Type For Full Alarm DLC-100 series specification

Heat-resistant 100℃ Type For Full Alarm DLC-100 series specification

*1 This product is not explosion proof. Please Do not use of flammable fuels such as gasoline, kerosene.
*2 Different voltage supply types can also be manufactured by special order. Please contact us.

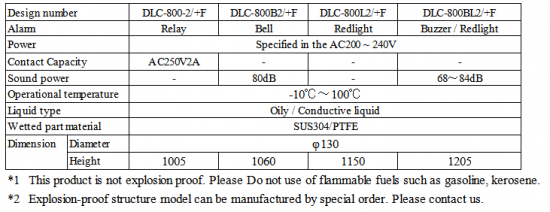

Heat-resistant 100℃ Type For Empty Alarm  DLC-800 series specification

Heat-resistant 100℃ Type For Empty Alarm  DLC-800 series specification

*1 This product is not explosion proof. Please Do not use of flammable fuels such as gasoline, kerosene.
*2 Different voltage supply types can also be manufactured by special order. Please contact us.

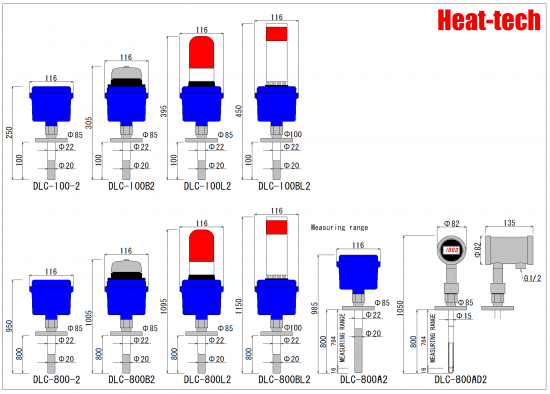

【Outline】

Outline

Outline
