Halogen Point Heater Overview and Model Selection

 High-Speed Point Heating

Halogen Point Heater
HPH series
Halogen Point Heater Overview and Model Selection

<<HPH-60/f30/36v-450w/WCU-60>>

1.Halogen Point Heater Model List

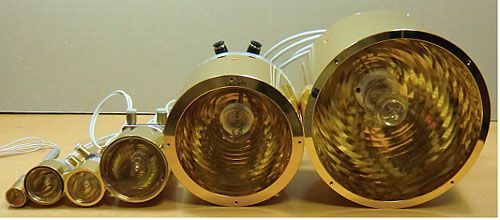

Halogen Point Heater Model List

2.Method of selecting the model

2-1.Confirm the heating range.

2-2.Select a heater with an appropriate point (=focal diameter) in the table of “Point (=Focal diameter), Power density, Focus (= Focal length) and Mirror size (= Heater diameter).”.

When heating combustible materials such as paper and resin, choose a product with low power density.
Metal heating selects products with high power density.

2-3.Select the cooling method for the heater.

■ Fan air cooling type can be used only with heater controller.
■ Compressed air cooling type requires a heater controller and air compressor, but it is small.
■ Water cooling type requires a heater controller and a chiller (water cooler), but it can also be used in a vacuum container.

2-4.Select a heater controller according to the application.

■ Manual control → HCV series
■ Automatic temperature control → HHC 2 series
■ Step temperature control → SSC series

※The details of the heater controller are explained on the following page.

Go to the Heater Controller site

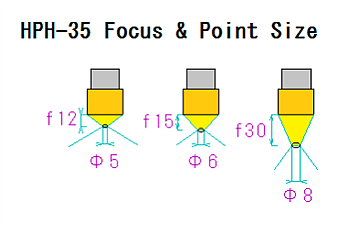

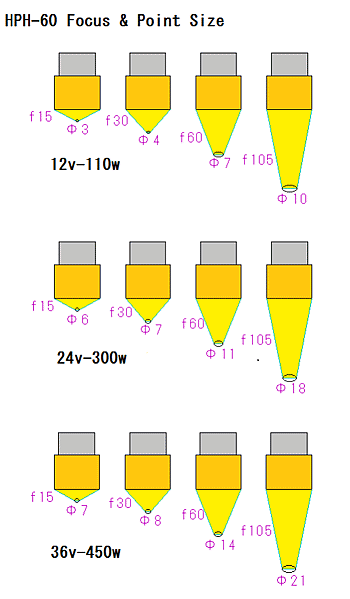

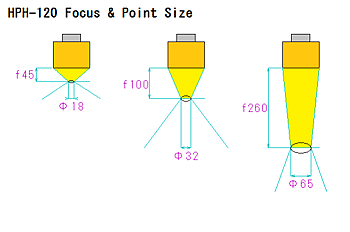

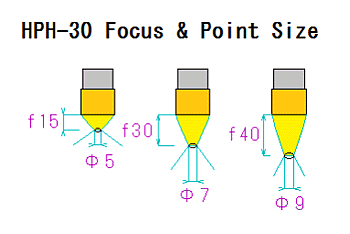

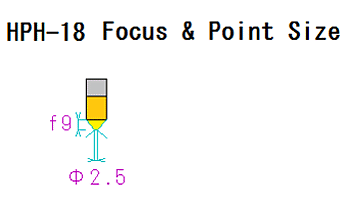

3.Point (=Focal diameter), Power density, Focus (= Focal length) and Mirror size (= Heater diameter).

Point (=Focal diameter), Power density, Focus (= Focal length) and Mirror size (= Heater diameter).



4.Characteristics of halogen point heater

The Halogen Point Heater is a high temperature heater that concentrates the energy of the halogen lamp on the point with a condensing mirror.

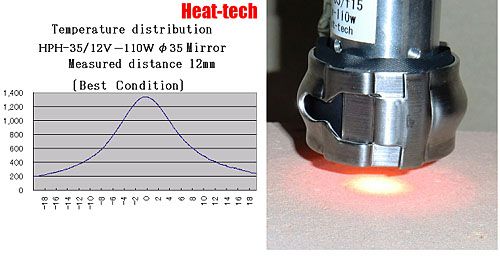

4-1.High-temperature heating, and heated to 1000 ℃ – 1400 ℃ in just 5 seconds!
High conversion efficiency from electrical to radiant energy,
Concentrate on one point the light of the halogen lamp, reach the temperature 1400 ℃ ~ 1500 ℃.

High-temperature heating, and heated to 1000 ℃ - 1400 ℃ in just 5 seconds!

High-temperature heating, and heated to 1000 ℃ - 1400 ℃ in just 5 seconds!

4-2.Instantaneous heating, the heating time can be shortened.
HPH is to put large amounts of heat at high speed, miniaturization of equipment,
the heating time can be shortened.
Until now, that was over 30 minutes of idling, idle time can be zero.
Since there is no lag temperature, eliminating the waste of waiting time.

Temperature rise so fast, turn OFF the power at idle. save money on electricity conservation.
Electricity rates can be used, per day, costs down 2kw x 0.5h x 12.16 = 12,16 yen.
Year (250 days operation), the cost down is 3040 yen.
In addition, the annual emissions reduction of 100kg C02 cut off !
※ unit power rate was calculated as the 12.16 yen / kWh.
※ CO2 emission factors were calculated as 0.4kg-CO2/kwh.

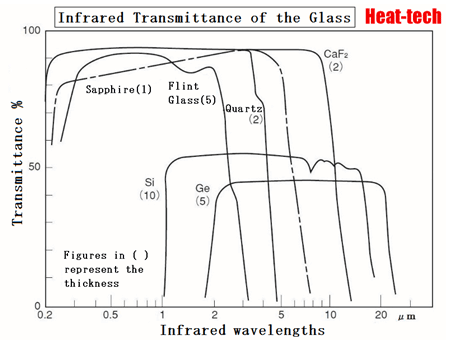

4-3.Heating through the glass.
Quartz glass hardly absorbs visible light and the near-infrared radiation.
Transmittance is 93%. There are only 7% reflection.
Through the glass, the heating can also work in an atmosphere of inert gas in the vacuum.

Heating through the glass.

4-4.Temperature can be controlled with high precision.
Control any temperature from ambient to maximum temperature with supply voltage.
Supply voltage of the lamp output is capable of any design, the maximum output is around 2.5kw.

4-5.Clean.
The optical non-contact heating can be the complete heating in the vacuum chamber.

4-6.Possible long life.
The lamp longevity can be arbitrarily controlled from usually longevity to long life by the supply voltage.

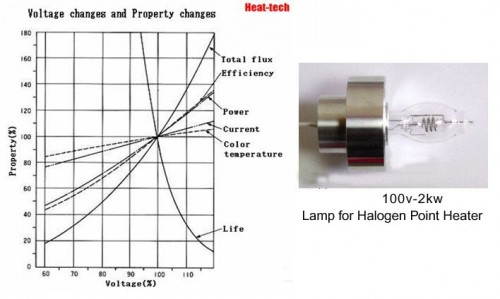

Voltage change and characteristic change

As shown in the above figure, if user lower it by 10% from the rated voltage, design life will be lengthens to 3 times.
If user lower it by 20% from the rated voltage, design life will be lengthens to 9 times.

4-7.Excellent in safety.
This heater is relatively safe for humans.
Neither dust nor the gases are generated, workers work comfortably.
Moreover, when trouble has came, this rapid cool heater can reduce the risk of ignition of the heated object.

Our Halogen Point Heater concentrates light of a halogen lamp by a concave mirror and heats it hotly.
The small size in the spot is decided depending on the lamp, the size of the mirror,
and the focal length, and the special distribution light design of widening the flash coverage,
and giving arbitrary distribution and worth is also possible.

4-8.Comparison of optical heating methods

Comparison of optical heating methods

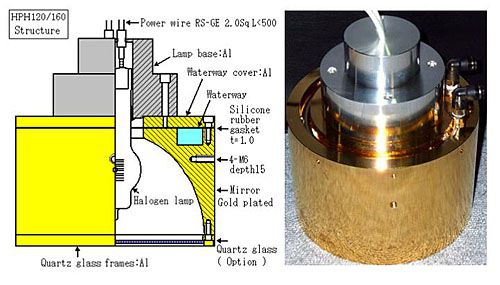

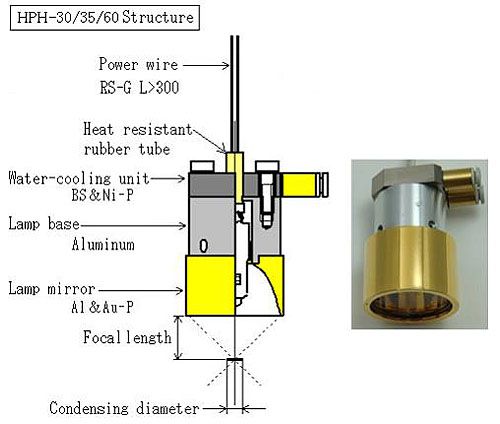

5.Basic structure

5-1.Air cooled fan installed type

Air cooled fan installed type

5-2.Compressed air cooling type

Compressed air cooling type

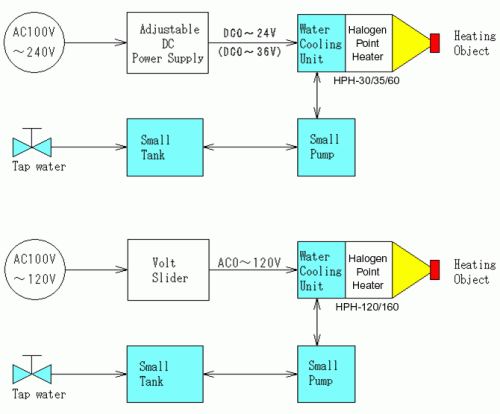

5-3.Water cooling type

Water cooling type

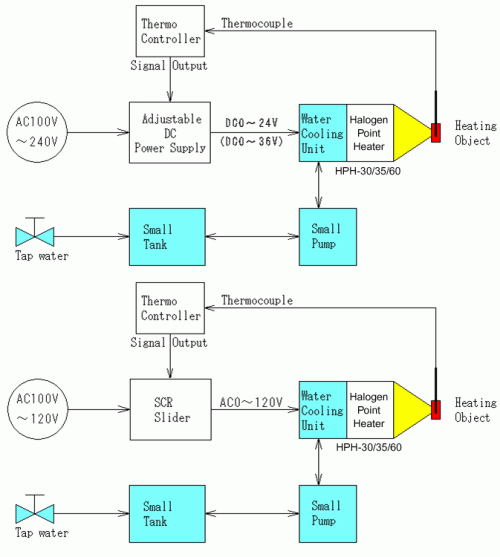

6.Heater controller and control method

6-1.Manual control → HCV series

Manual control → HCV series

Go to the HCV series site

6-2.Automatic temperature control → HHC 2 series

Automatic temperature control → HHC 2 series

Go to the HHC2 series site

7.Infrared absorption rate

Characteristics of halogen light

Infrared absorption rate

Organism

Infrared absorption rate

Mineral

Infrared absorption rate

Magnetic metal

Infrared absorption rate

Precious/Monferrous metal

Infrared absorption rate

Rare earth

Infrared absorption rate

8.Handling notes

1) Strong light is harmful to the eyes.
There is a risk of blindness when looking straight at the halogen light.
Please protect eyes with thick sunglasses etc.
when you see the condensing part of the filament and the spot heater of the lamp under lighting.

Handling notes

2) When the electric current flow or heating, please avoid touching the hand to the heater.
For high temperatures, user may get burned.

Handling notes

3) The maximum working temperature of HPH series is 160 ℃.

Handling notes

If user live more than 30 seconds may not exceed the specified temperature, please do the cooling.

4) HPH series are not explosion proof.
If experiencing explosive flammable gas when heated and dried, please do ventilation to safely.

5)Please do not touch the heating object to the HPH series while the electric current flow
There is a possibility of the leak and the ignition according to the short.

6)Please use the heat resistance wires such as the glass coating silicon rubber insulation electric wire ,
Siegel line or the Teflon coating electric wires for the in-furnace wiring.

7)The halogen light is not good at the check with eyes of generation of heat.
Please confirm the temperature of the heater and the heating object with the thermometer.

8) Halogen light is the straight like sunlight, only direct exposure has effect on the object to be dried or heated. According to the shape of the work, while turning and rotation reversal, please halogen light shines so uniformly.

9)Deterioration on the mirror side causes a remarkable performance decrease.
Please soak solvents such as alcohol and benzene into a soft cloth and wipe the dust on the mirror side off lightly.

10) Please ground the furnace casing and the frame.
