Far-infrared Point Heater FPH-50

INDEX

1.Features of FPH-50

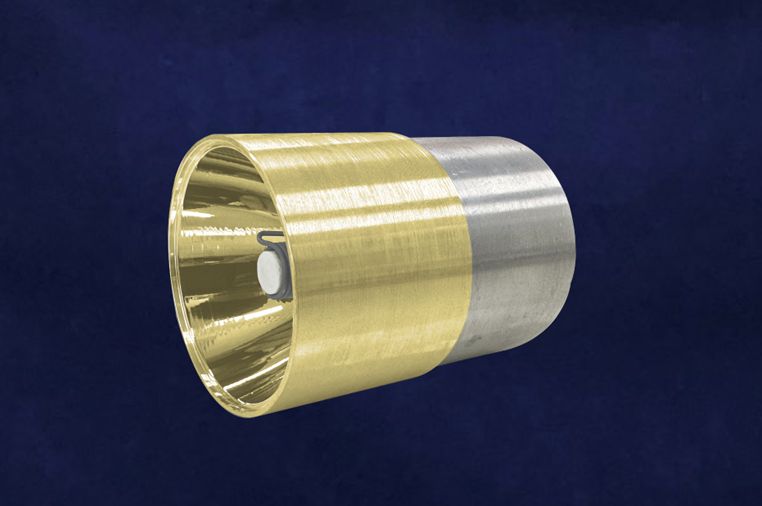

2.External photo of FPH-50
3.Manual control → HCV Series
4.Automatic temperature control → HHC2 Series

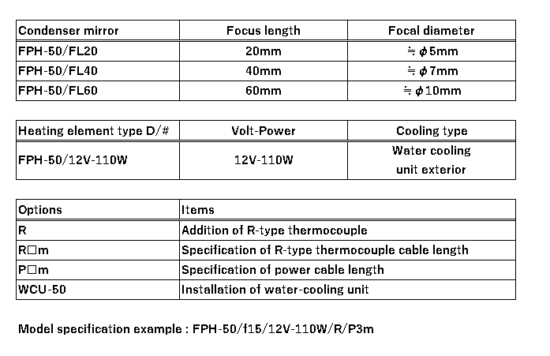

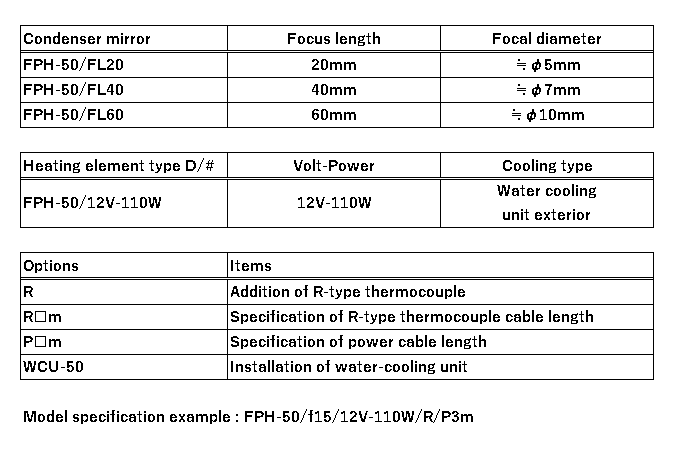

5. Configuration of FPH-50

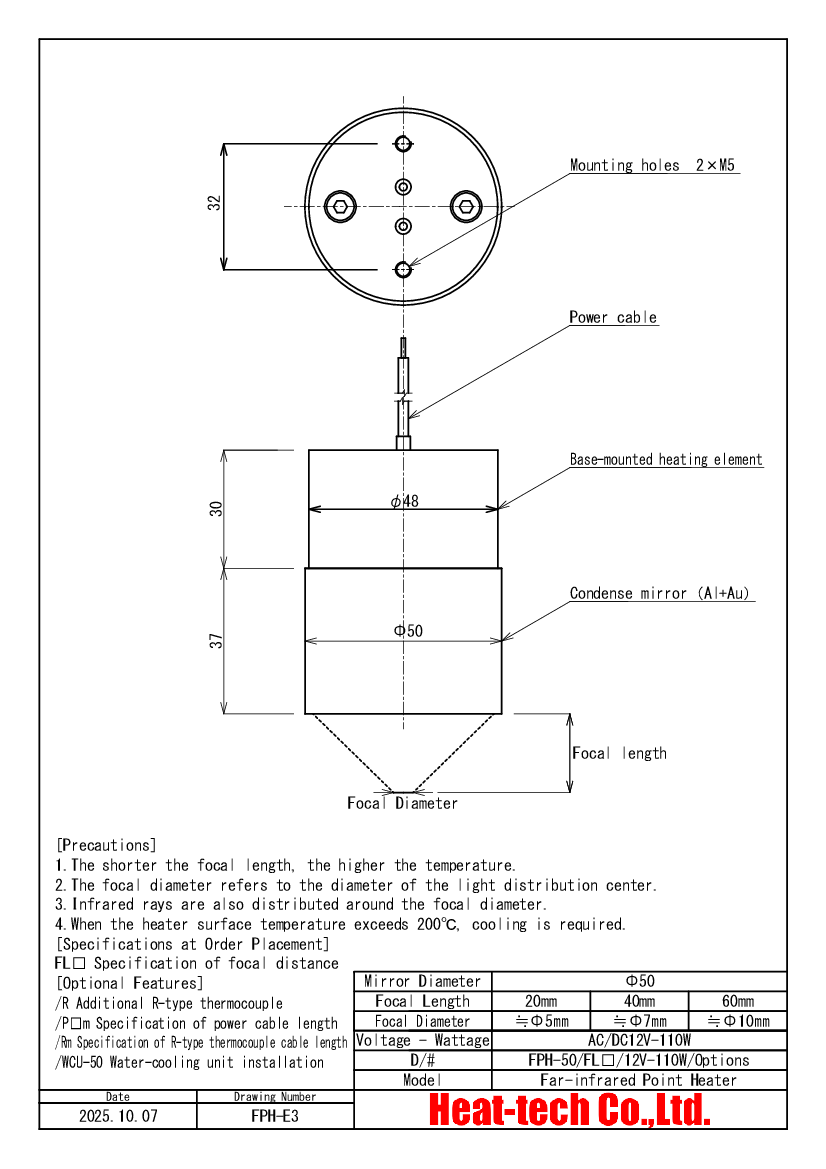

6.External dimensions of FPH-50

1.Features of FPH-50

1)It is a medium-sized unit.
The dimensions are Φ50 mm × 67 mm (diameter × height).
It can be installed in narrow spaces within machines.
The minimum focal diameter is φ5 mm.

2)Clean.
Since it uses non-contact heating without any medium, ultra-clean heating is possible.

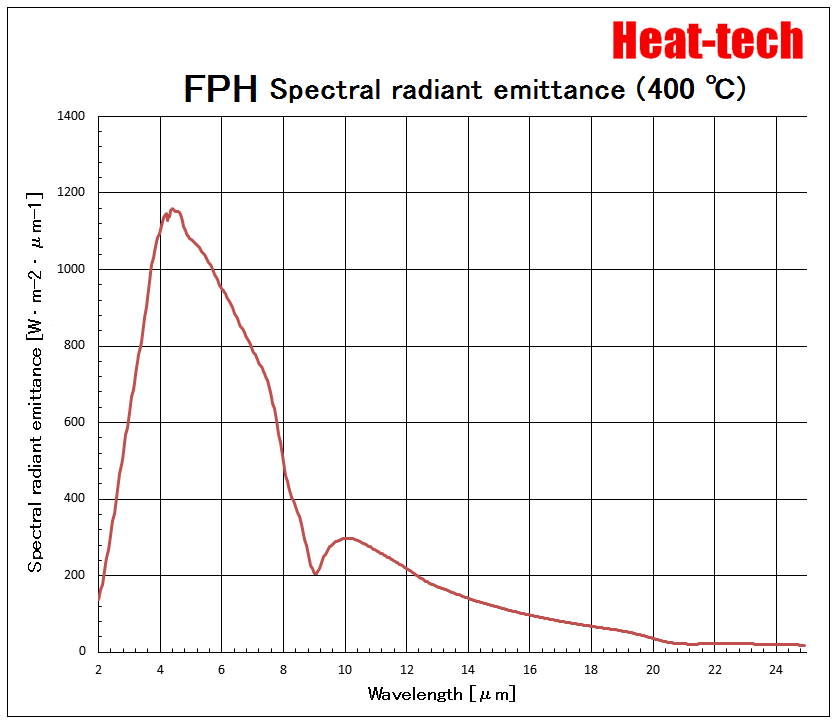

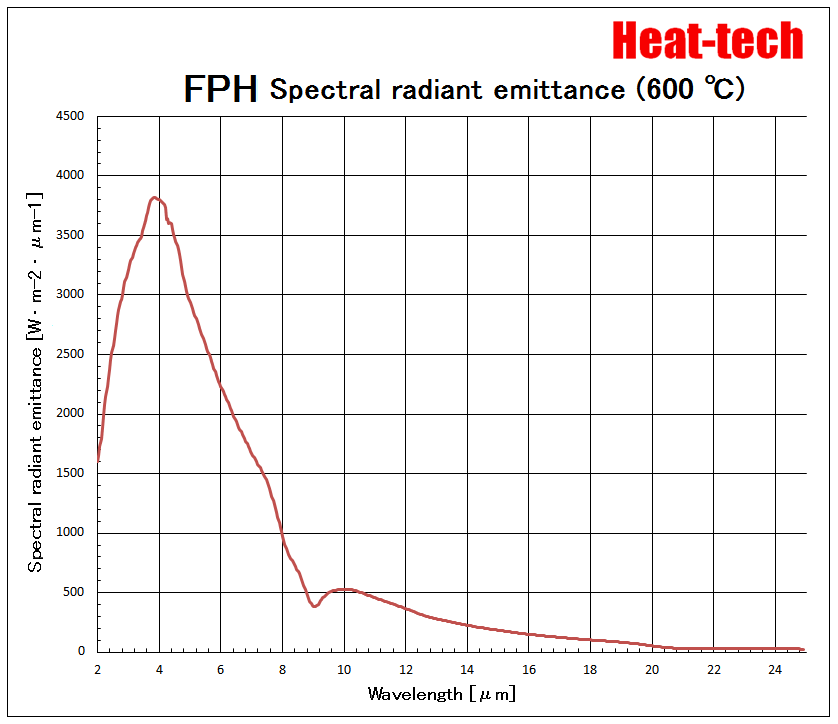

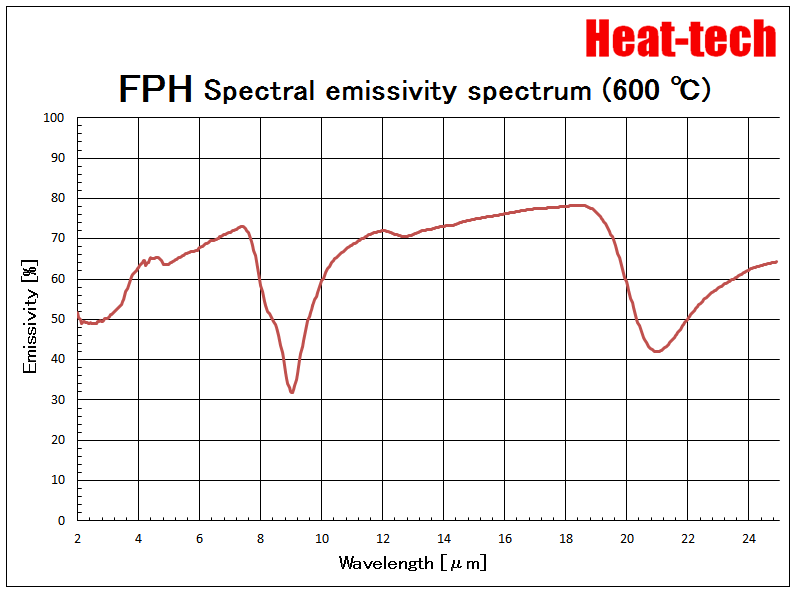

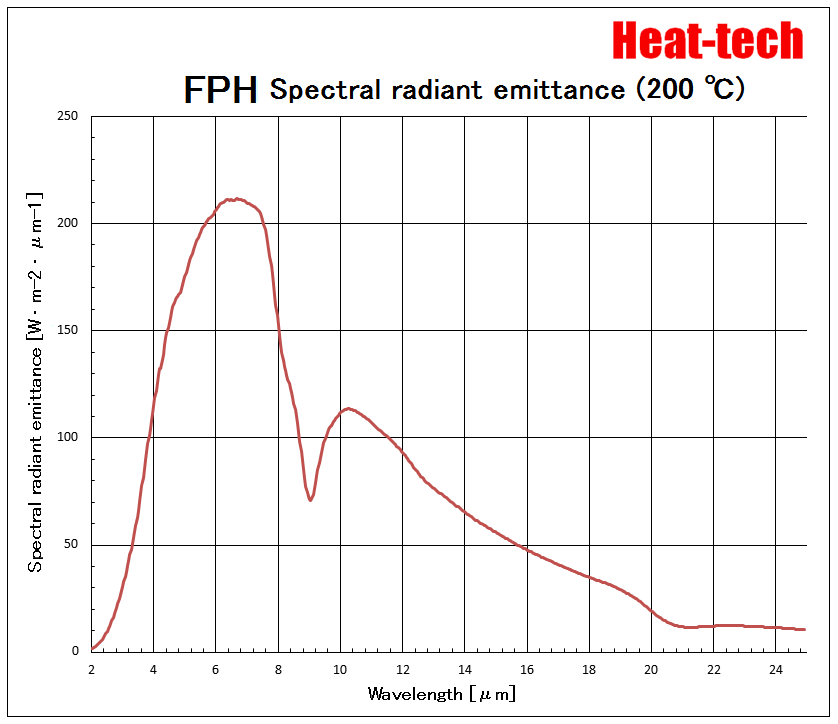

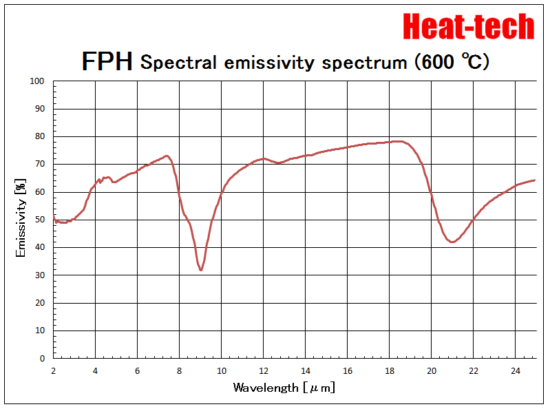

3)Stable radiation characteristics.

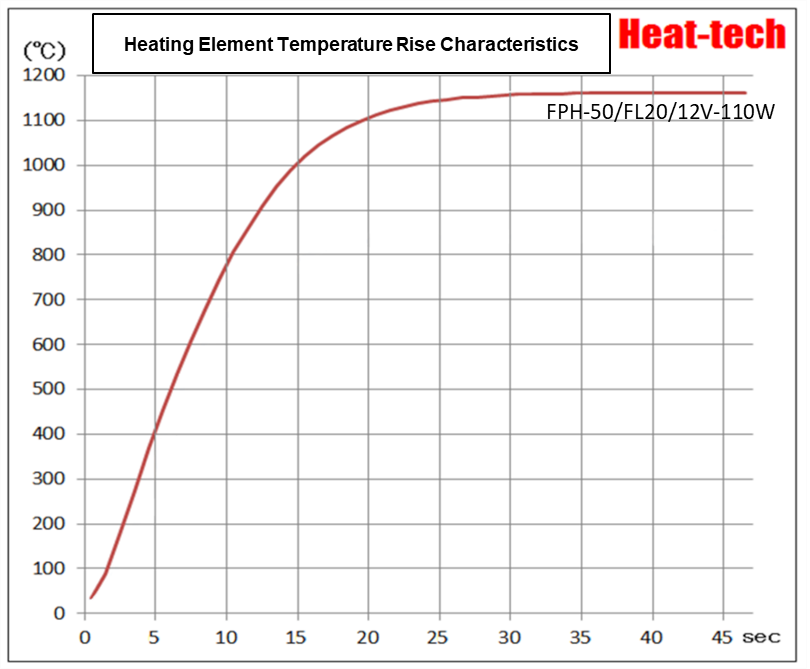

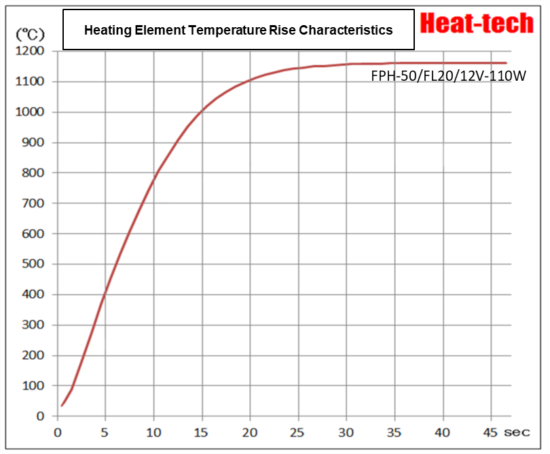

4)Fast response allows for shorter heating time.

It reaches a high temperature of 800 °C in just 15 seconds.

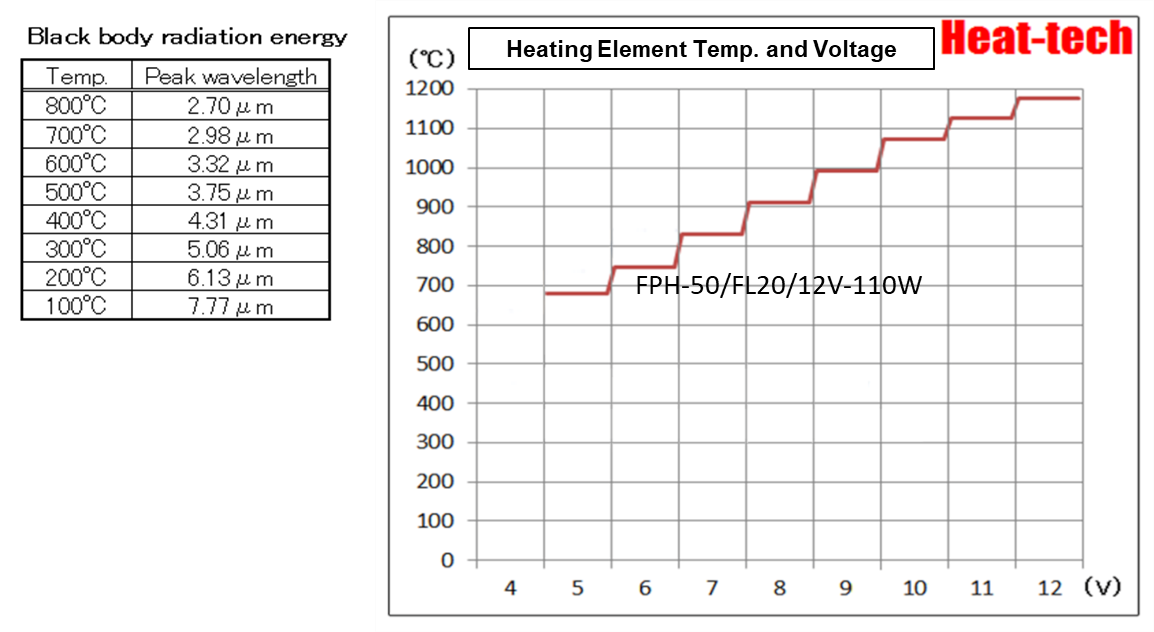

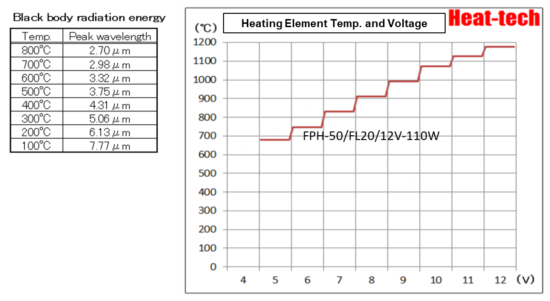

5)Frequency control of the heating element is possible.
By adjusting the temperature of the heating element, the peak frequency of far-infrared radiation can be controlled.
