Far-infrared Point Heater FPH-60

INDEX

1.Features of FPH-60

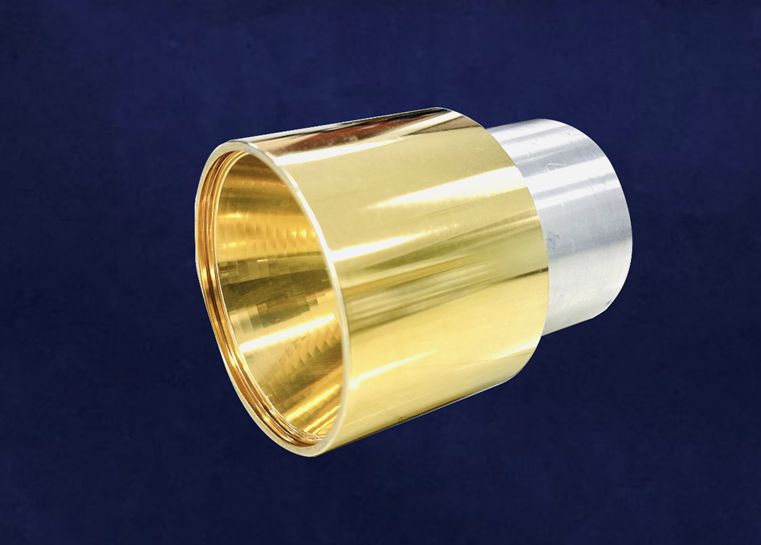

2.External photo of FPH-60

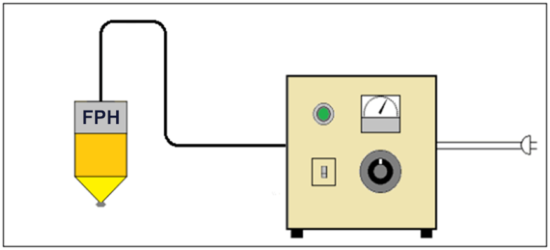

3.Manual control → HCV Series

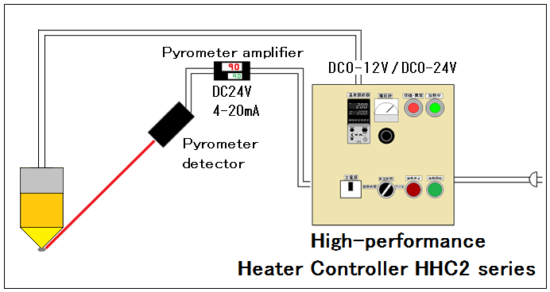

4.Automatic temperature control → HHC2 Series

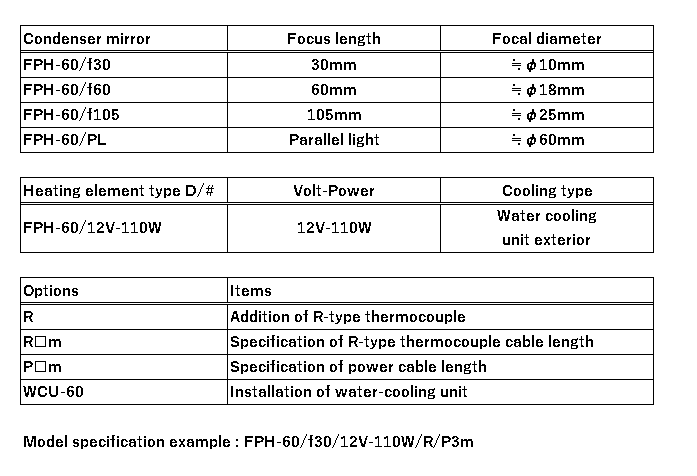

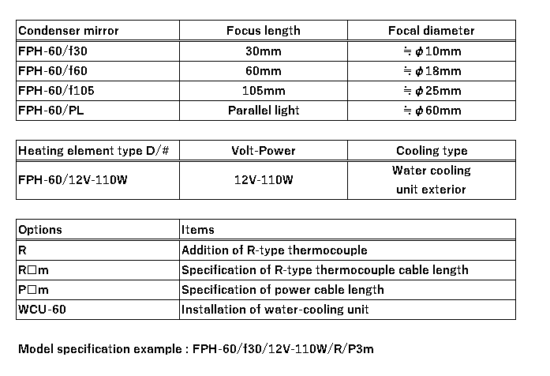

5. Configuration of FPH-60

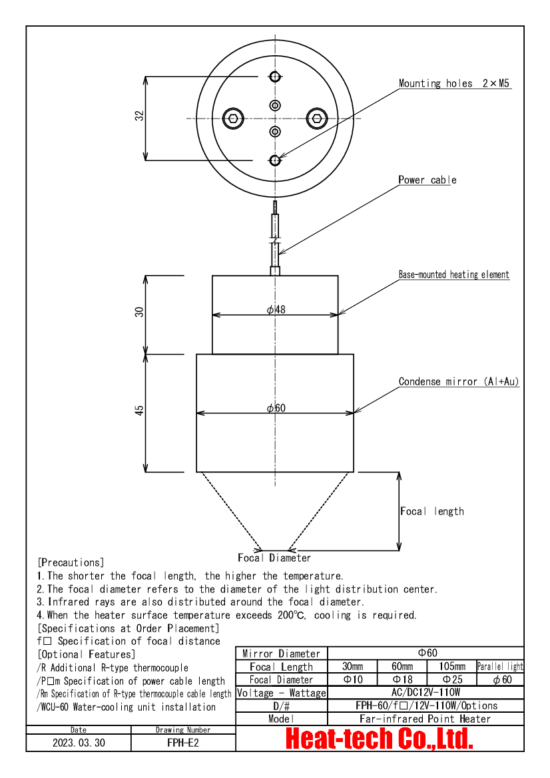

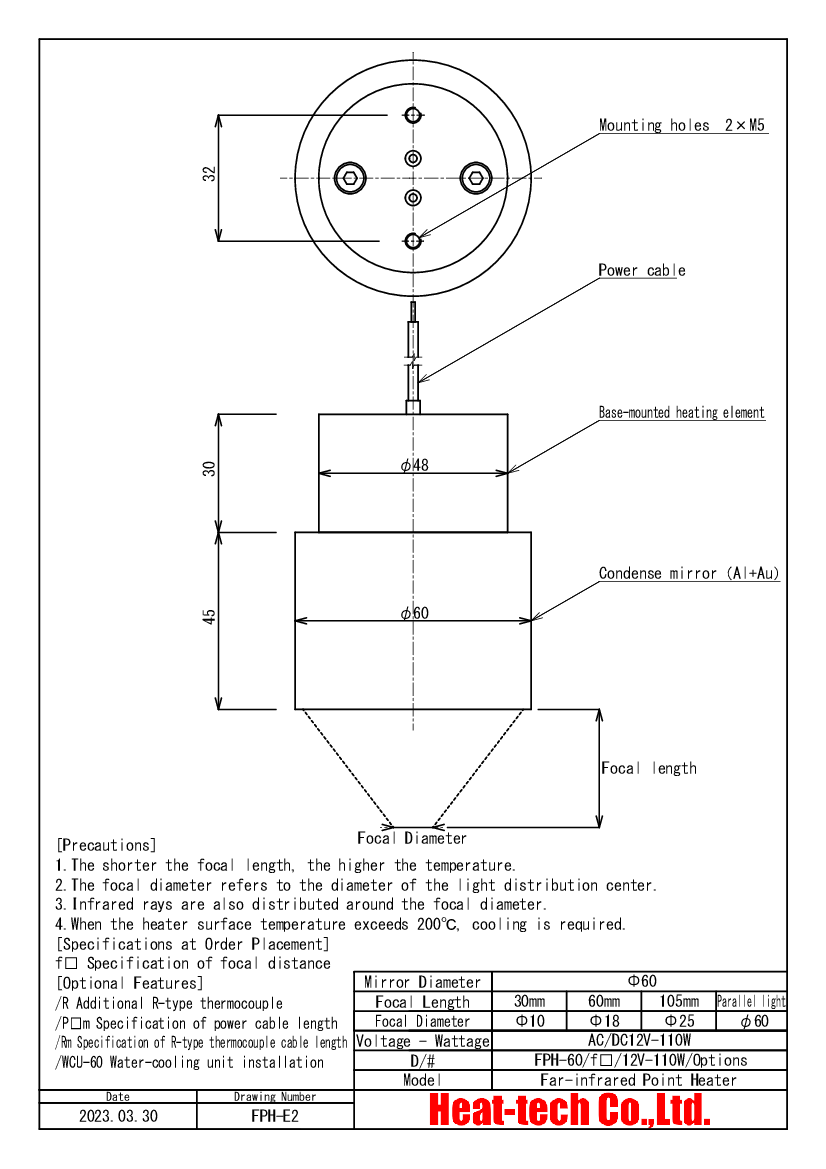

6.External dimensions of FPH-60

1.Features of FPH-60

1)It is a medium-sized unit.
The dimensions are Φ60 mm × 75 mm (diameter × height).
It can be installed in narrow spaces within machines.
The minimum focal diameter is φ10 mm.

2)Clean.
Since it uses non-contact heating without any medium, ultra-clean heating is possible.

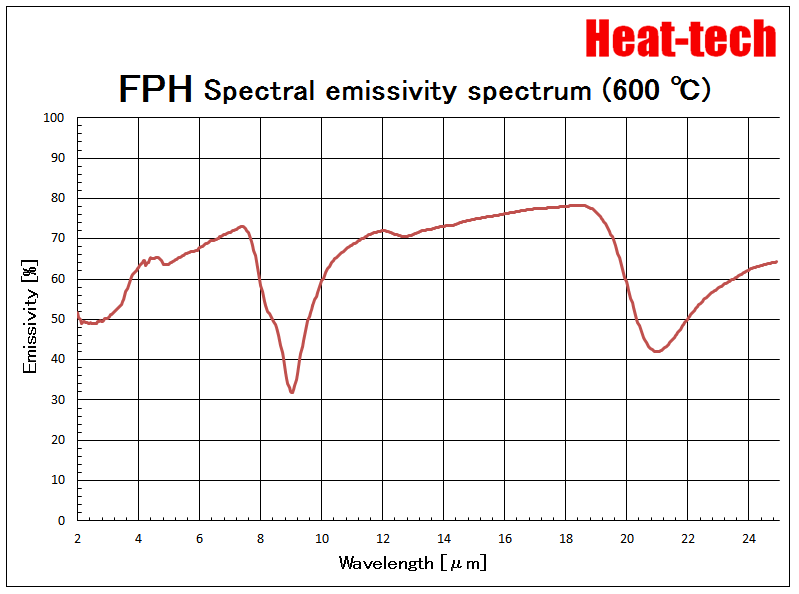

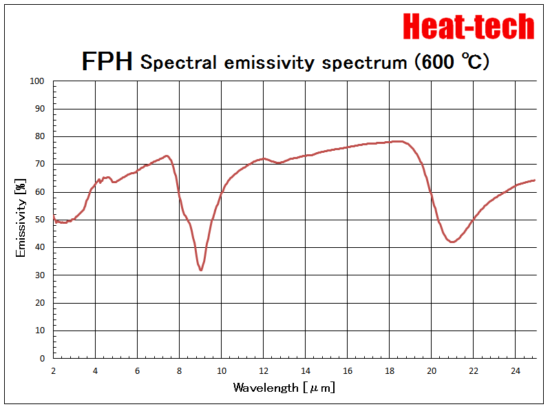

3)Stable radiation characteristics.

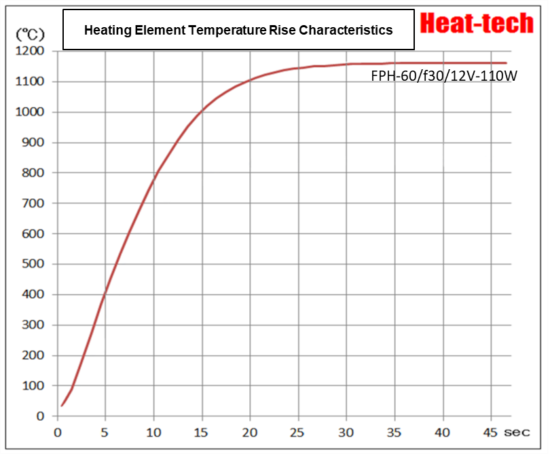

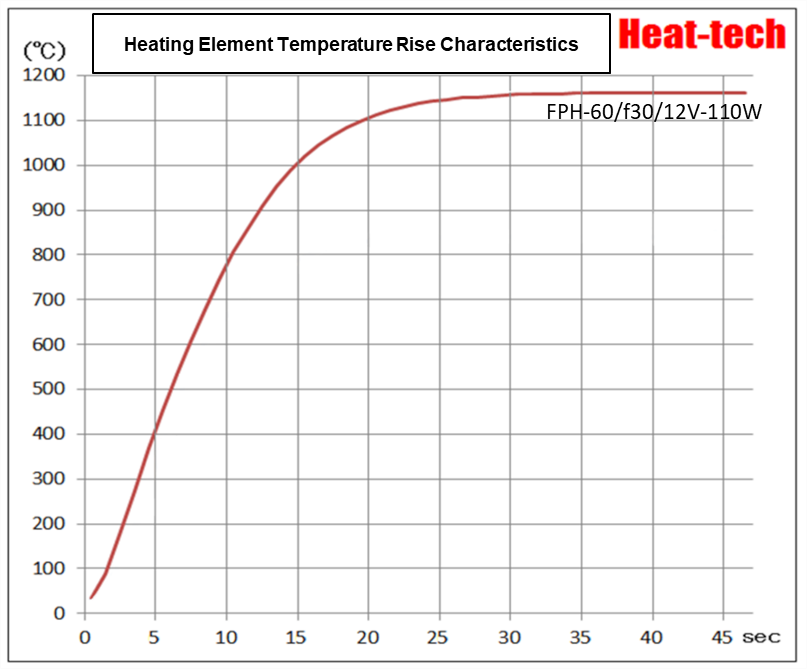

4)Fast response allows for shorter heating time.

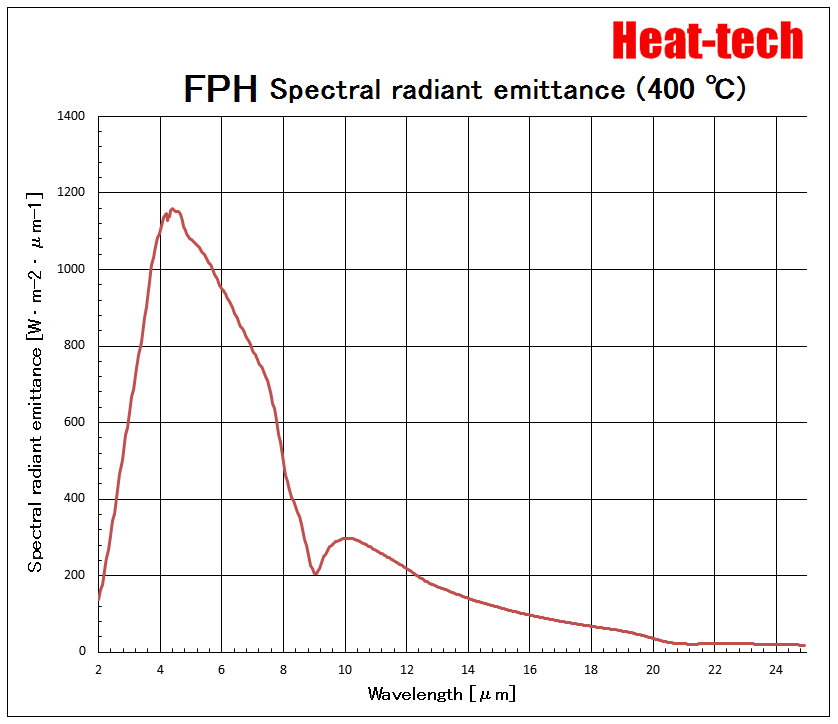

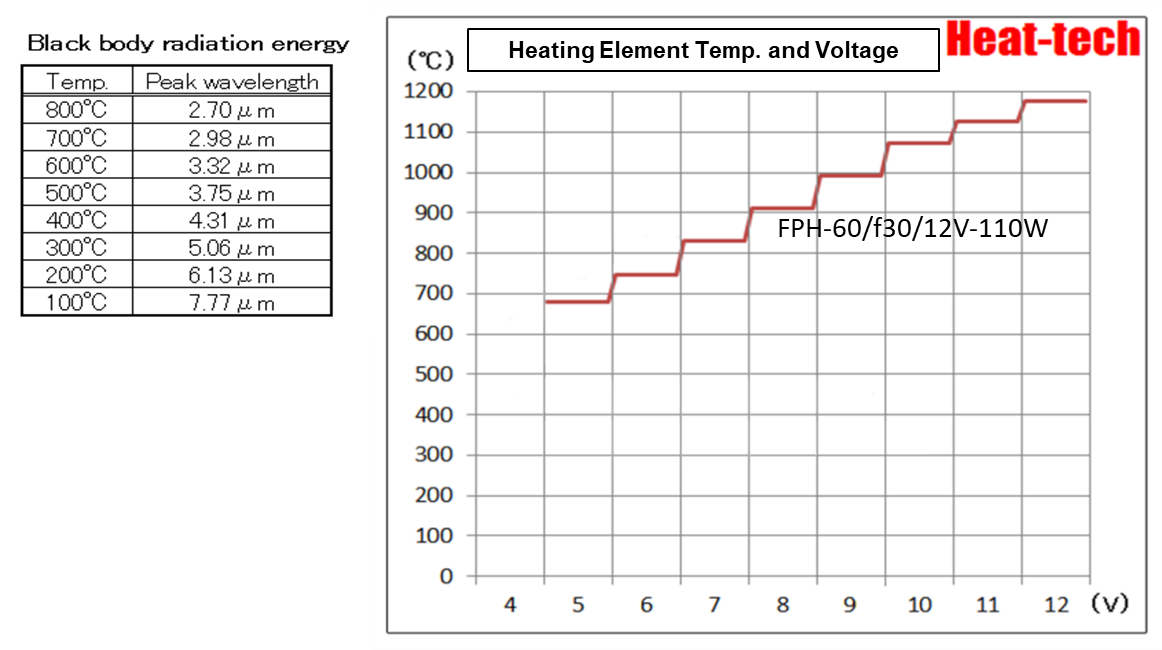

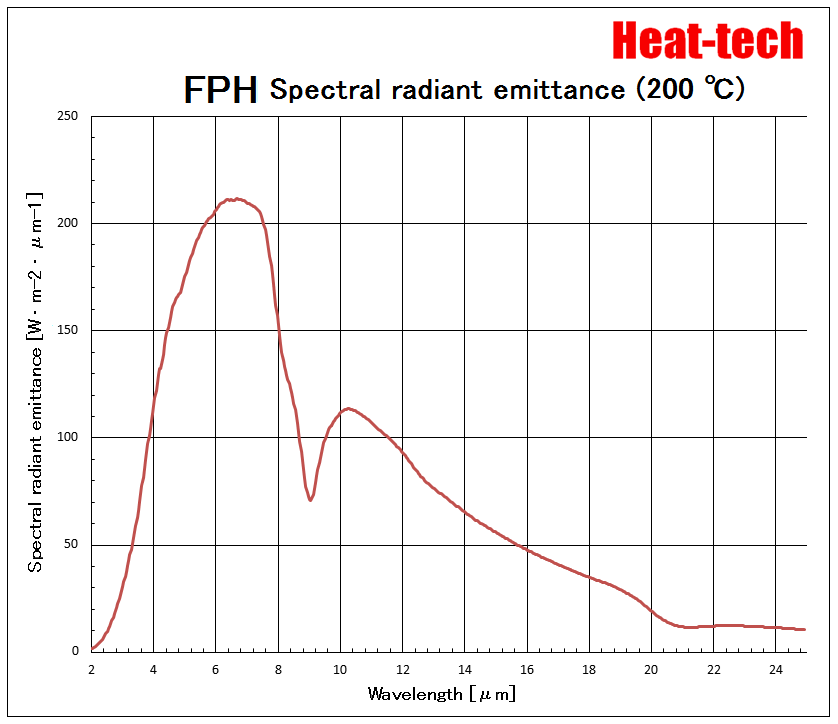

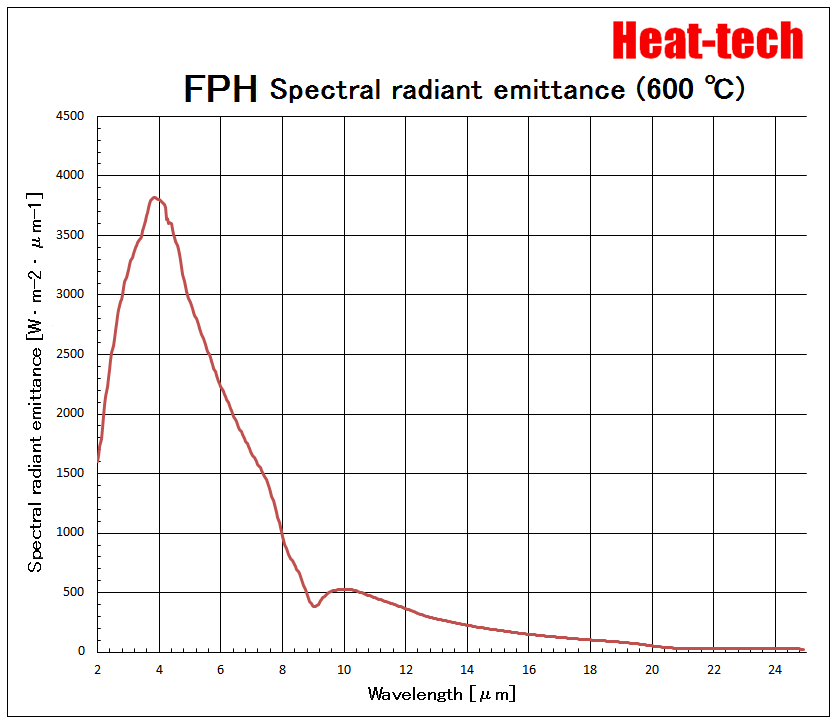

5)Frequency control of the heating element is possible.
By adjusting the temperature of the heating element, the peak frequency of far-infrared radiation can be controlled.
