Parallel beam type far-infrared line heater FLH-35 Series

Fast heating

Parallel beam type far-infrared line heater FLH-35 Series

  • Rising is early, so heating time can be reduced.
  • Highly precise temperature control can be done.
  • Frequency management of heating element can be done.
  • This is a far-infrared radiation, so this is good at heating of glass.
  • Ultra-compact.
  • Clean.
  • When this is lined up, plane heating can be done.

Parallel beam type far-infrared line heater FLH-35 Series1

Rising is early, so heating time can be reduced.

Parallel beam type far-infrared line heater FLH-35 Series2

Highly precise temperature control can be done.

Since thermocouple built-in, user can adjust freely the temperature of the heating element.

Parallel beam type far-infrared line heater FLH-35 Series3

Frequency management of heating element can be done.

By adjusting the temperature of the heating element, it is possible to manage the far-infrared rays of the peak frequency.

Parallel beam type far-infrared line heater FLH-35 Series4

*It also reduces the transfer (radiation) energy and lower the temperature.

Parallel beam type far-infrared line heater FLH-35 Series5

Parallel beam type far-infrared line heater FLH-35 Series6

Parallel beam type far-infrared line heater FLH-35 Series7

Parallel beam type far-infrared line heater FLH-35 Series8

This is a far-infrared radiation, so this is good at heating of glass.

Parallel beam type far-infrared line heater FLH-35 Series9

Ultra-compact.

It is a very small. Height 36mm x Width 35mm x Length 50~316mm.
It can be installed in the gap of the machine.

Clean.

It’s medium-less by non-contact heating, so it can be heated very cleanly.

When this is lined up, plane heating can be done.

Parallel beam type far-infrared line heater FLH-35 Series10

So width 35mm, user can side-by-side use and surface heating.
User can achieve uniform far-infrared plane heating.

[ Focal length ]

[ Focal length ]

[ Models Variation ]

[ Models Variation ]

[ Models constitution ]

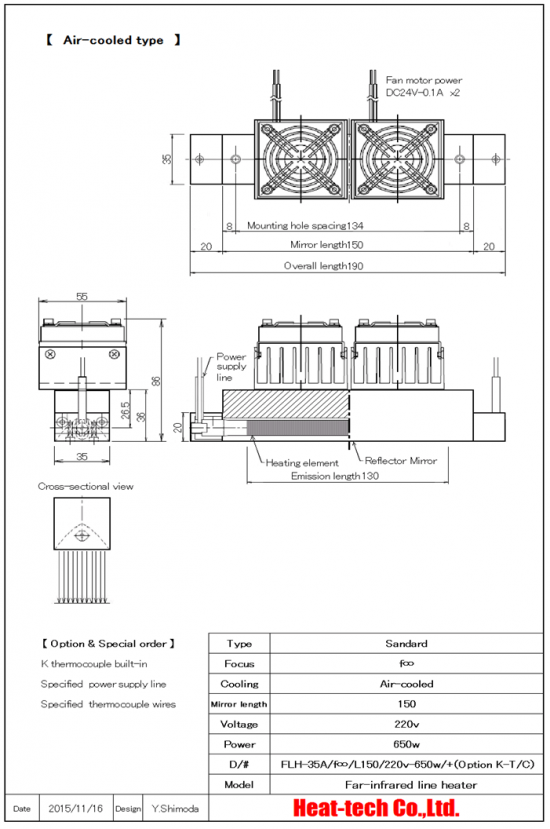

(Example) FLH-35A/f∞/L150/220v-650w/+S/P3m・S3m

Models constitution



Parallel beam type far-infrared line heater FLH-35 Series14

Parallel beam type far-infrared line heater FLH-35 Series15

Parallel beam type far-infrared line heater FLH-35 Series16

Parallel beam type far-infrared line heater FLH-35 Series17
