1.Feature of the High temperatur medium size Air Blow Heater ABH-HR
ABH-HR can heat passage gas to 1050℃
- ABH-HR can heat gas in an environment of 200 ° C
- ABH-HR can discharge high temperature air up to 1000 ℃.
- ABH-HR can be fitted with a variety of fittings, either internally or externally threaded.
- Accurate temperature control can be achieved by using a thermocouple at the outlet
- The temperature of the heating element can be monitored with additional specifications, so that safety measures against overheating can be taken.
- The heating elements of 50w to 6.3kw are incorporated in four types of metal tube case (φ13, φ19, φ22, φ28).
2.Outline photograph of ABH-HR
3.Outline photograph of Air Blow Connector
4.Voltage / Temperature / Air flow

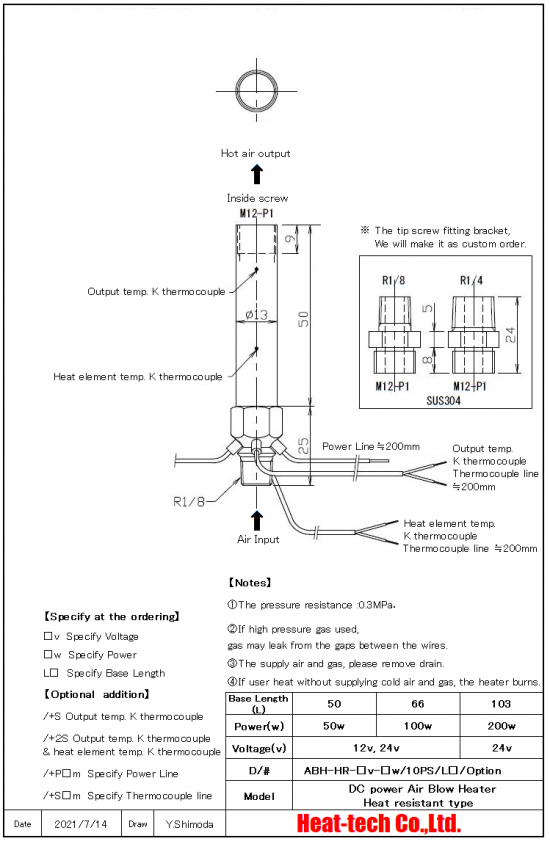

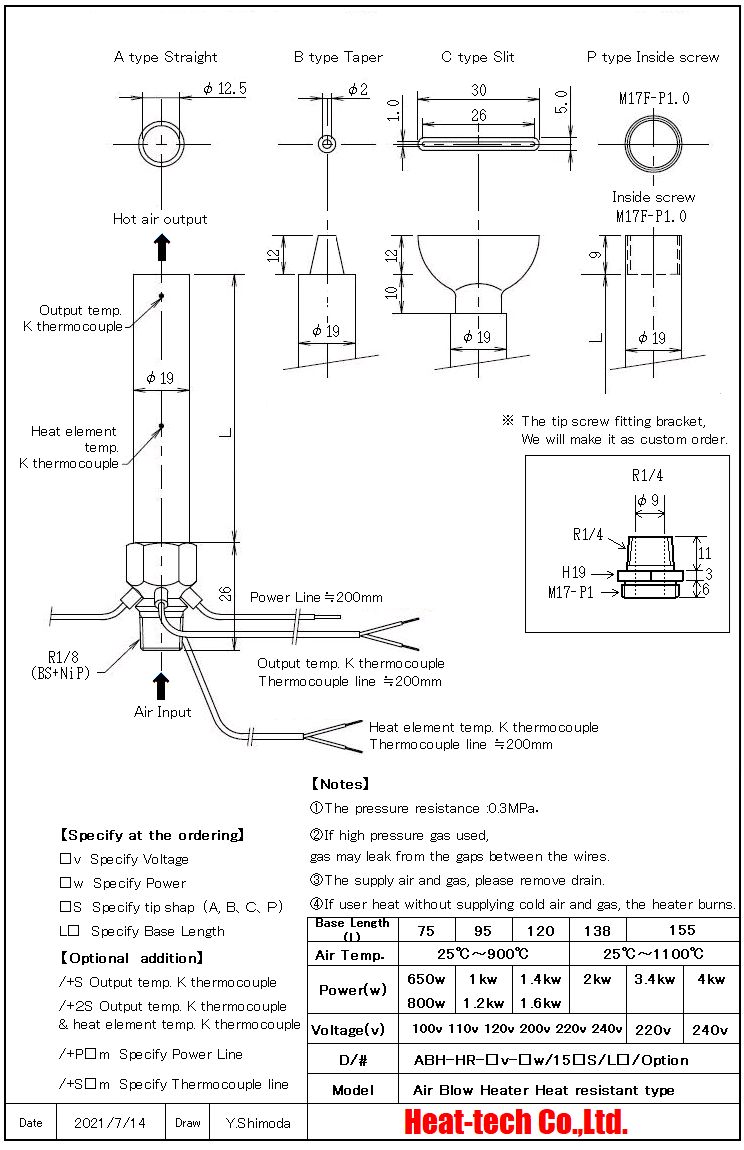

5.Outline drawing of ABH-HR
