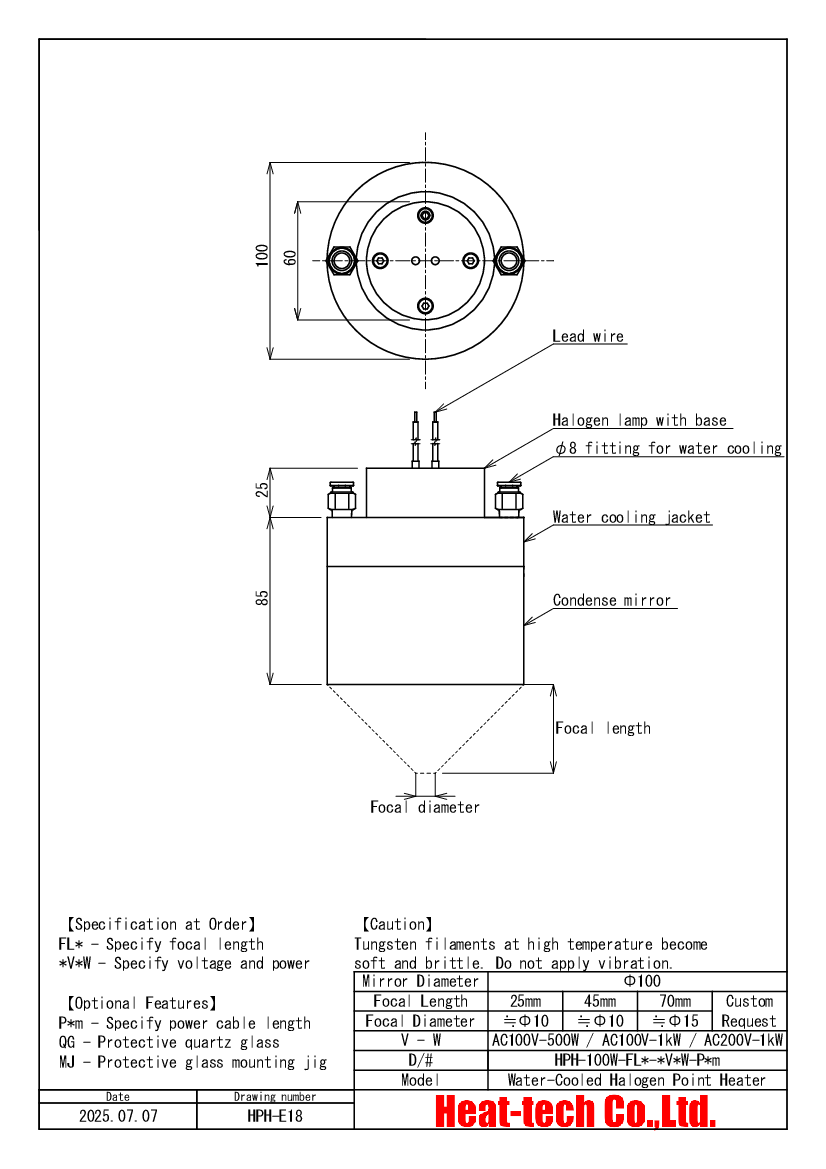

Ultra-High Temperature Halogen Point Heater – HPH-100 Series

INDEX

1. Features of HPH-100
2. Outline photograph of HPH-100
3. Focus and point size of HPH-100
4. Temparature rising time of HPH-100
5. Voltage and lifetime of HPH-100
6. Manual control → HCV series
7. s
Automatic temperature control → HHC 2 serie
8. Configuration of HPH-100
9. Outline drawing of HPH-100

1. Features of HPH-100

1) Quickly heats a φ10mm point up to 1750°C
The HPH-100 is a halogen point heater that focuses halogen lamp light to a single point using a reflective mirror, enabling localized high-temperature heating.
The actual temperature may vary depending on the infrared absorption rate of the target material, but it can heat a φ10mm point to approximately 1750°C at a focal length of 25mm.

The heating temperature can be controlled by adjusting either the irradiation time or the voltage.
Using the heater at 90% of the rated voltage can extend the lamp life by approximately three times.

Note: Frequent ON/OFF operation shortens the lamp lifespan.
Gradual voltage ramp-up at startup and ramp-down at shutdown can help extend the lamp life.

2) Enables high-precision and safe non-contact heating
The halogen point heater uses non-contact infrared heating, allowing energy to be transferred without touching the target object.
Advantages include:
■ Can heat delicate or micro components without physical damage
■ No risk of contamination, making it suitable for applications requiring high cleanliness such as medical or semiconductor fields
■ No mechanical wear due to non-contact heating, resulting in excellent maintainability

3) Provides clean heating, usable in cleanrooms and vacuum environments
When using in a vacuum chamber, initial outgassing may occur from the inorganic adhesive. Pre-vacuum processing is recommended.

4) No restriction on installation angle, usable while in motion
When mounted on movable parts, be sure to implement shock-absorption measures, as significant impact may occur during stopping.

5) By adopting a water-cooling system, the device operates with extremely low noise even during operation.
Equipped with a standard φ8 mm water-cooling fitting, it is ideal for integration into small chillers and benchtop devices,
offering efficient cooling and excellent compatibility.

2. Outline photograph of HPH-100

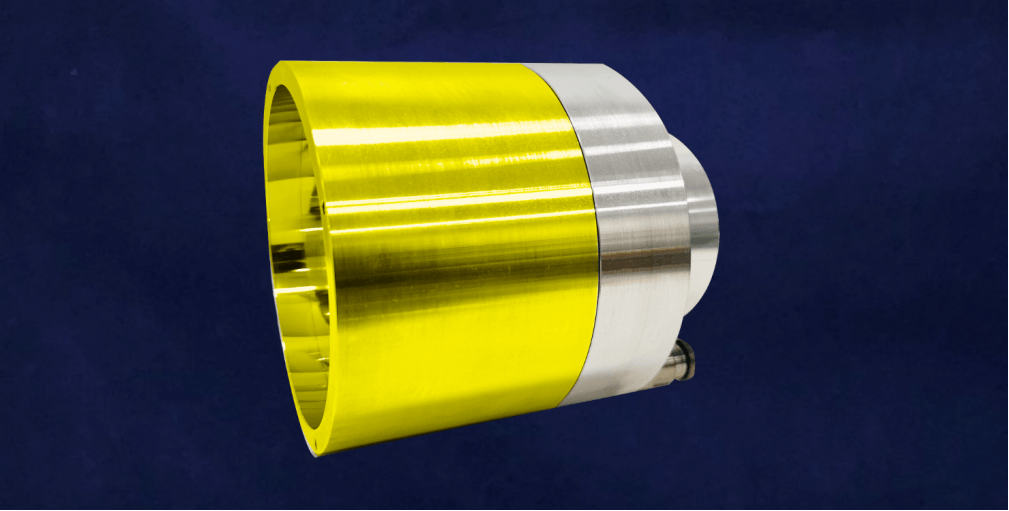

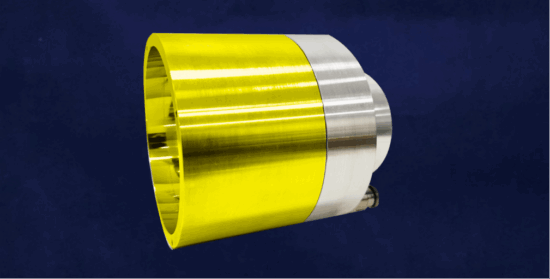

Water cooling type HPH-100W-FL45-100V1kW

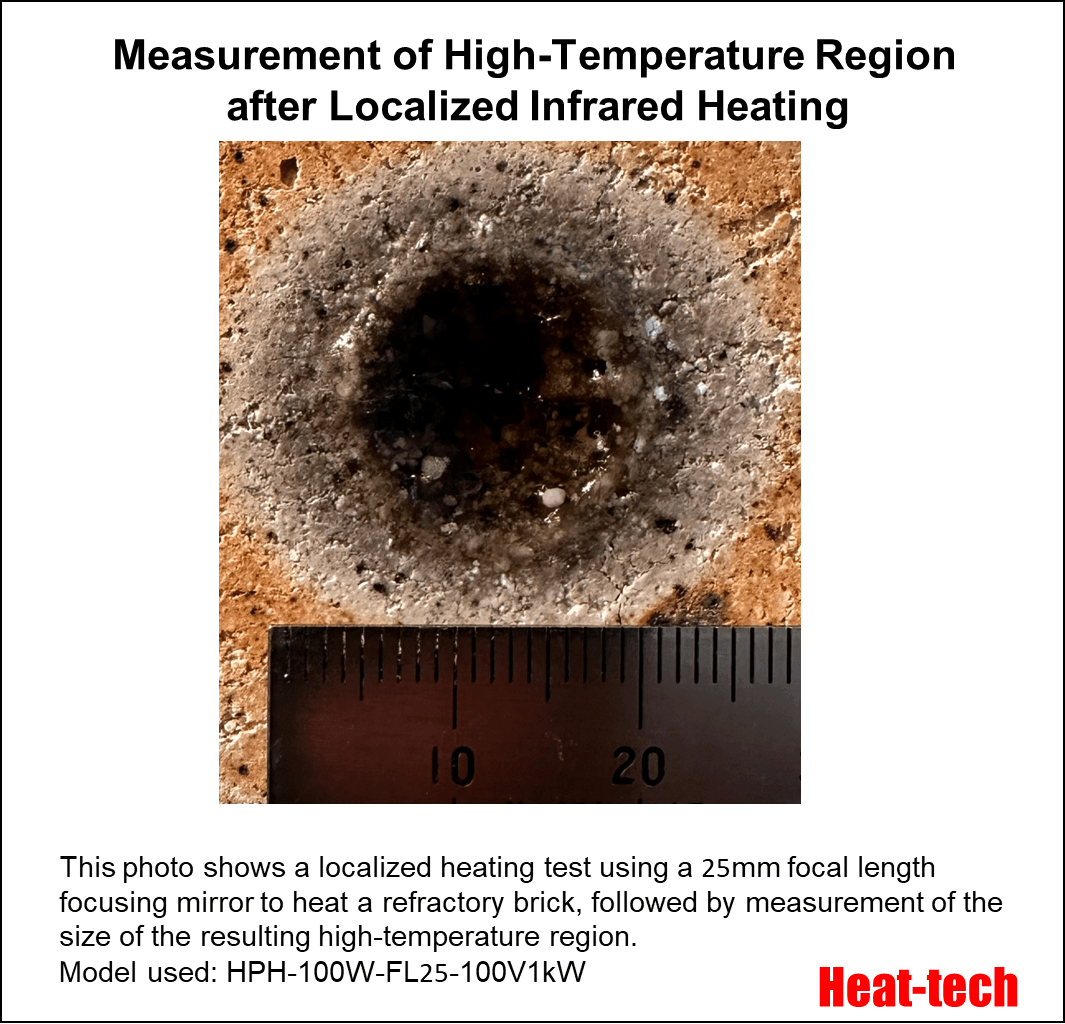

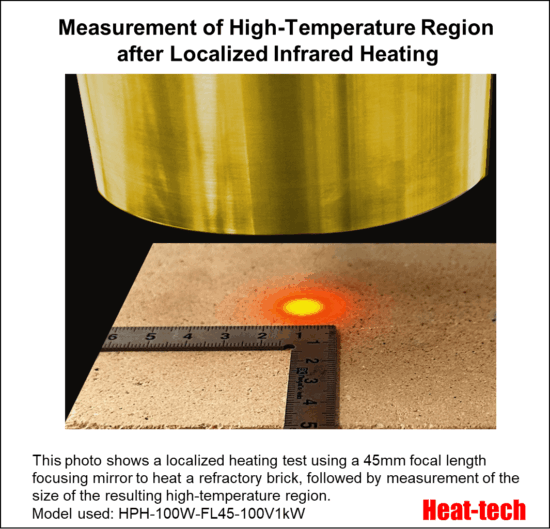

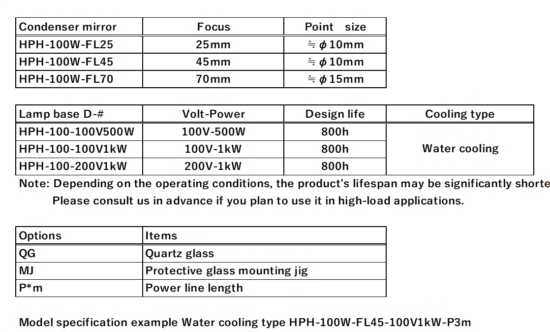

3. Focus and point size of HPH-100

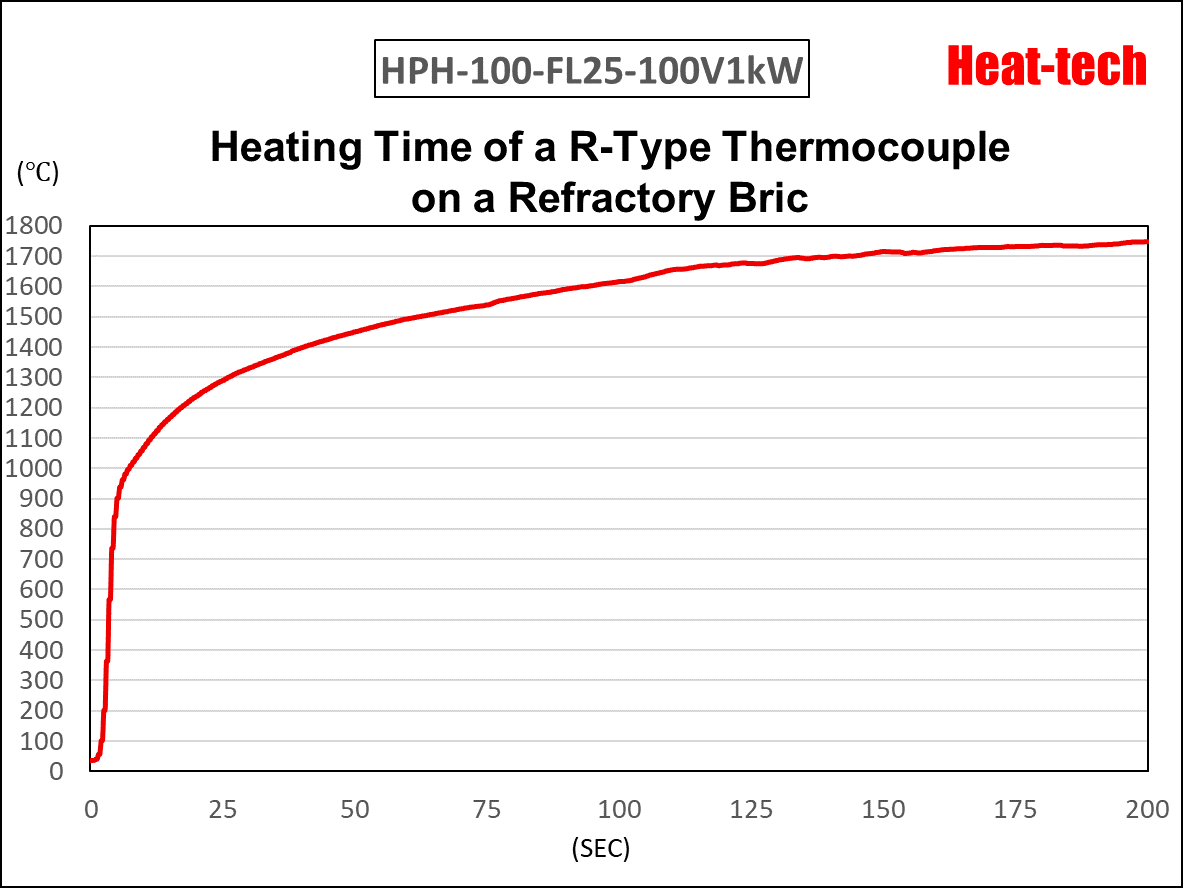

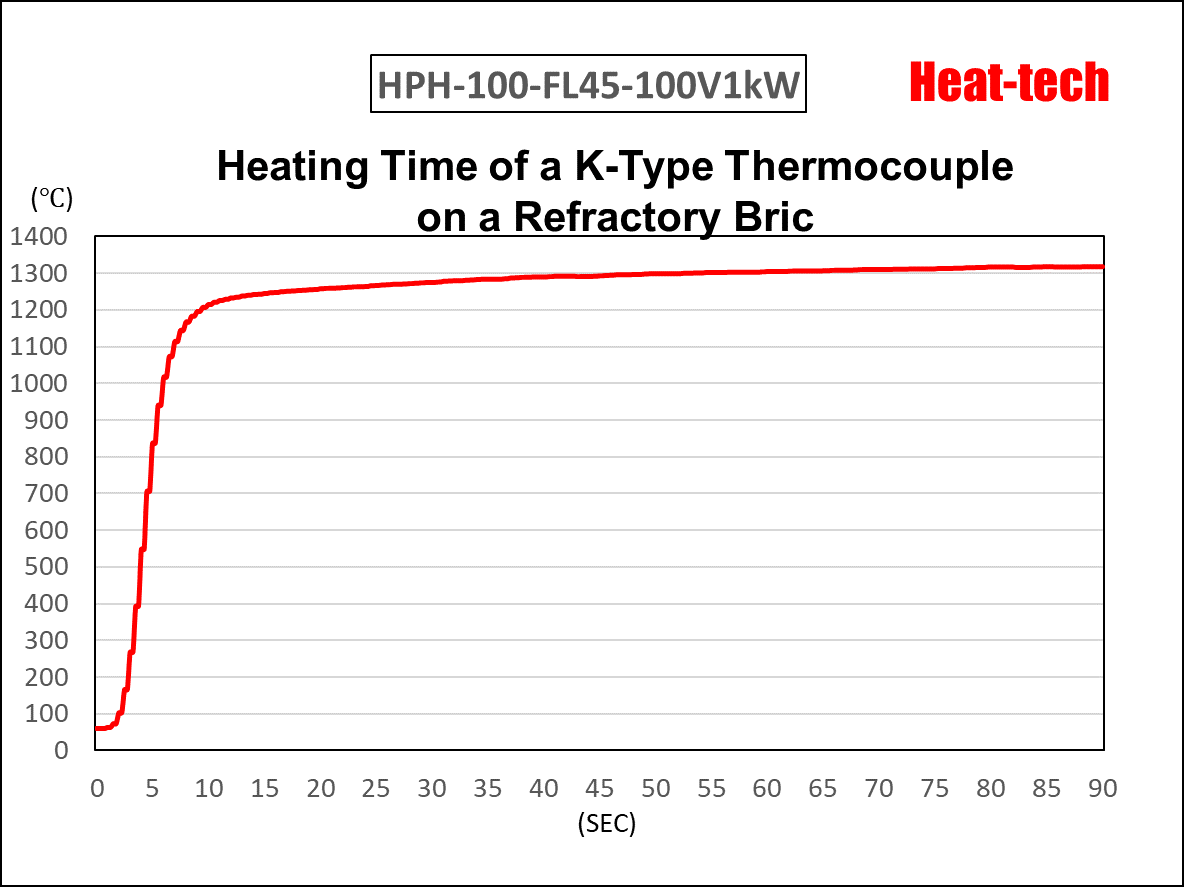

4. Temparature rising time of HPH-100

5. Voltage and lifetime of HPH-100

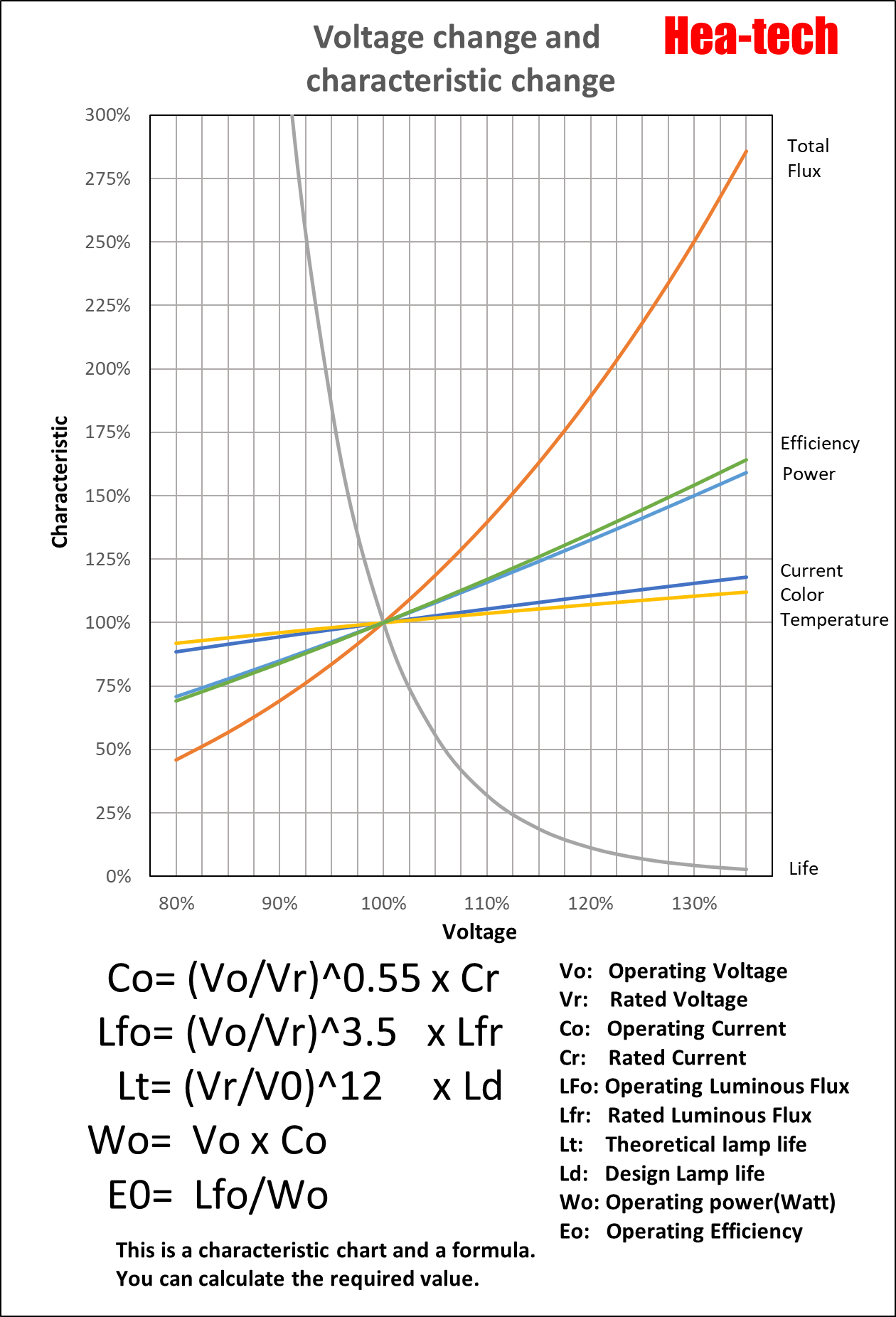

As shown in the above figure, if user lower it by 10% from the rated voltage, design life will be lengthens to 3 times.
If user lower it by 20% from the rated voltage, design life will be lengthens to 9 times.
